Midnite Battery Combiner Box with 50mv Shunt (Optional Third Busbar NOT inlcuded)

Midnite Battery Combiner Box with 50mv Shunt (Optional Third Busbar NOT inlcuded)

Regular price $1,699.00 CAD
Regular price $1,834.00 CAD Sale price $1,699.00 CAD
Sale Sold out
Shipping calculated at checkout.

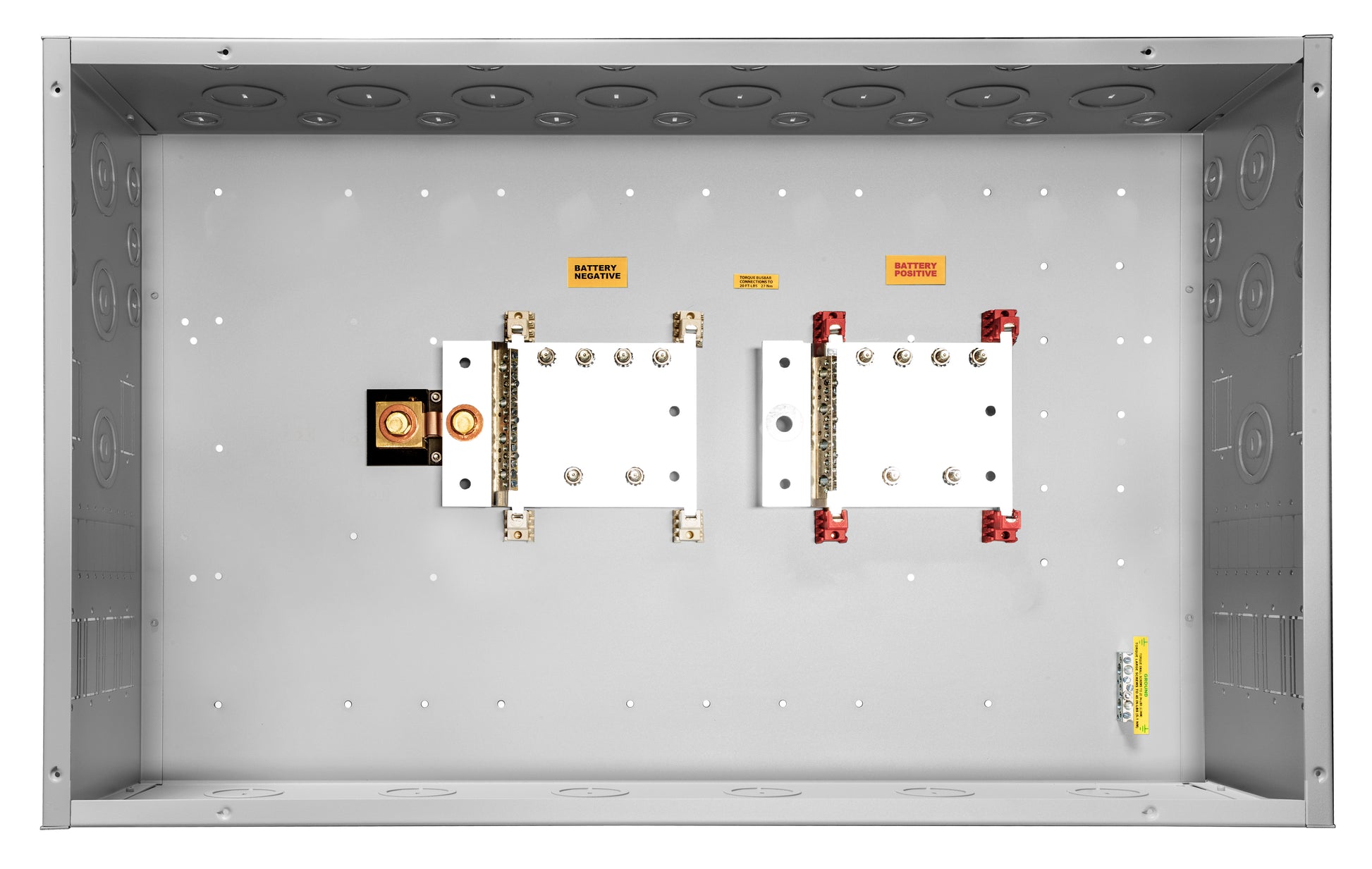

MidNite 1000amp battery combiner box includes a 1000A Positive and Negative bus bar with 3/8 inch studs. Cables can be double lugged and the copper bus bar can be drilled for additional mounting locations. We recommend you use 3/8 inch stainless bolts if you drill holes to attach more ring terminals.
Includes a 1000amp 50mv Shunt with 1/2 inch bolt for customer connection (SMA uses 50mv shunt)
1000amp 100mv shunt available see MNBCB-1000/100 (Radian uses 100mv shunt)
Has locations for up to 12 of our MNEDC Battery Breakers
Powder Coated Steel

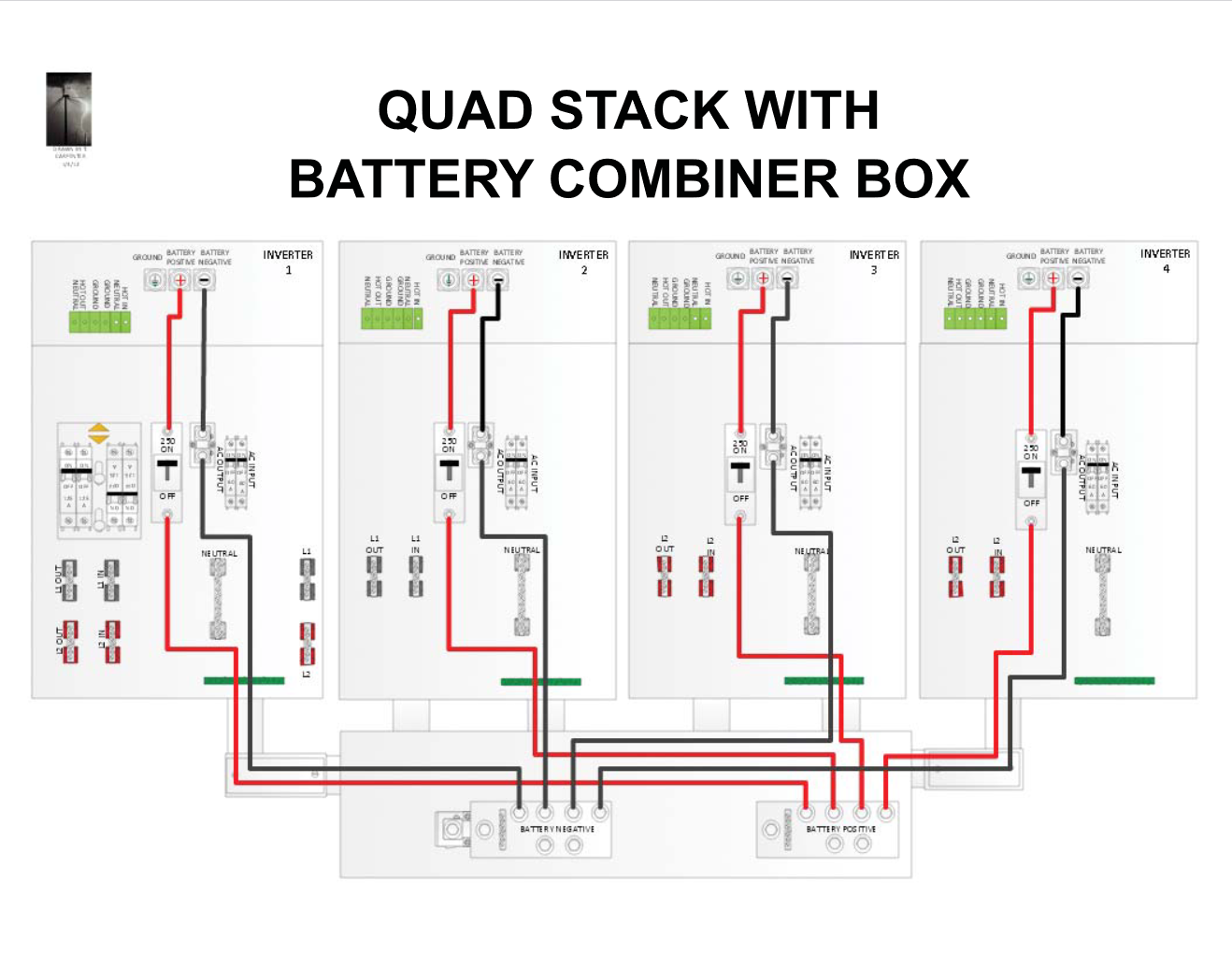

Useful for dual, triple or quad SMA sunny Island inverters as well as for combining multiple strings of batteries.
  • Max. AC Voltage - 277VAC
  • Max. DC Voltage - 300VDC
  • Max. Wire Size - 4/0
  • Number of Spaces - 12
  • Environment Rating - Type 1 environmental rating (indoor)
  • Warranty - 5yrs
  • Made in USA
Description:

MidNite 1000amp battery combiner box
Includes a 1000amp Positive and Negative bus bar with 3/8 inch studs. Cables can be double lugged and the copper bus bar can be drilled for additional mounting locations,

We recommend you use 3/8 inch stainless bolts if you drill holes to attach more ring terminals.
Includes a 1000amp 50mv Shunt with 1/2 inch bolt for customer connection (SMA uses 50mv shunt)
1000amp 100mv shunt available see MNBCB-1000/100(Radian uses 100mv shunt(
Has locations for up to 12 of our MNEDC Battery Breakers
Powder Coated Steel
