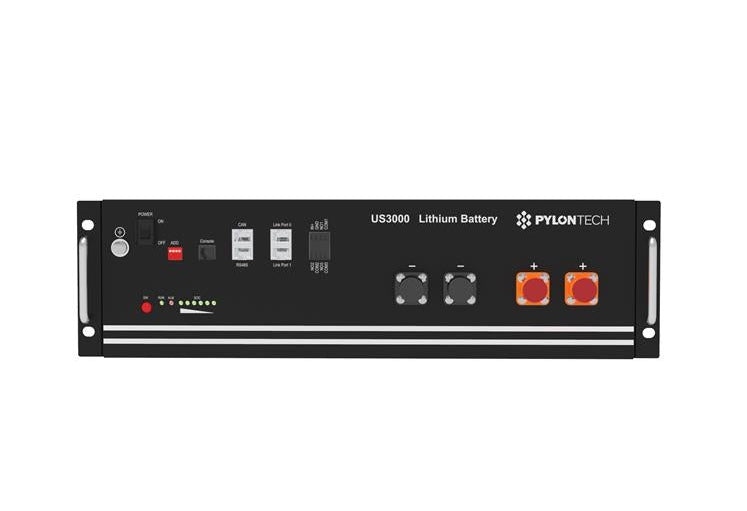

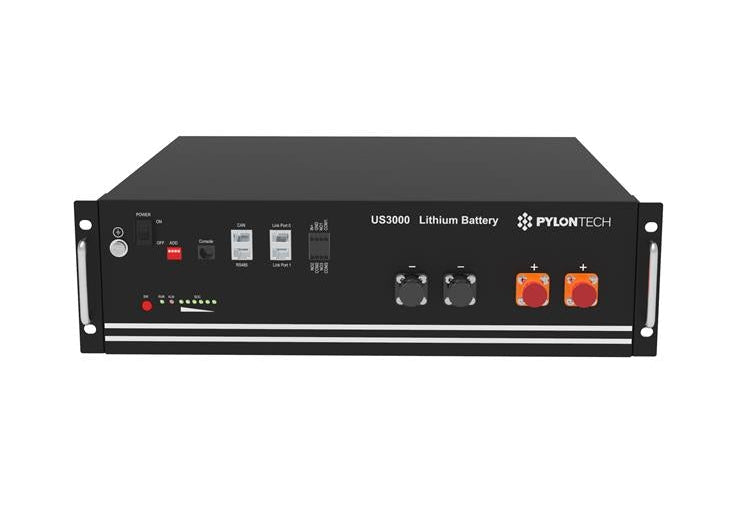

Pylontech - 74Ah LiFePO4 Server Rack Battery | Lithium | 48V | 74Ah | 3.552 kWh

Pylontech - 74Ah LiFePO4 Server Rack Battery | Lithium | 48V | 74Ah | 3.552 kWh

$2,999.00 CAD
$3,130.00 CAD $2,999.00 CAD
Sale Sold out
Shipping calculated at checkout.

Flat rate shipping of $100 due to size and weight, plus $50 per additional 48V 100ah Server Rack battery in the same order

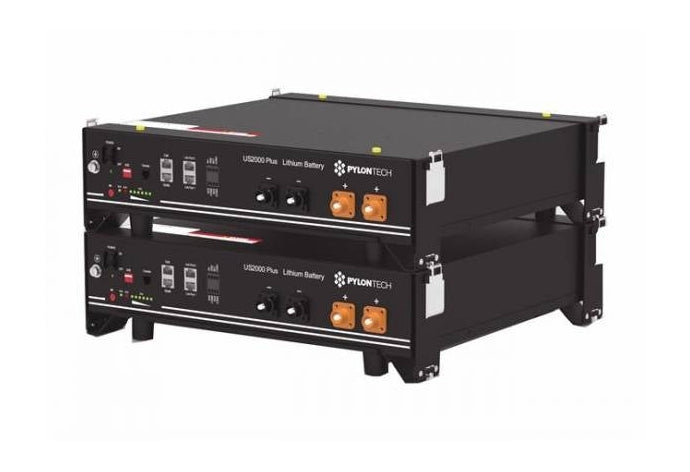

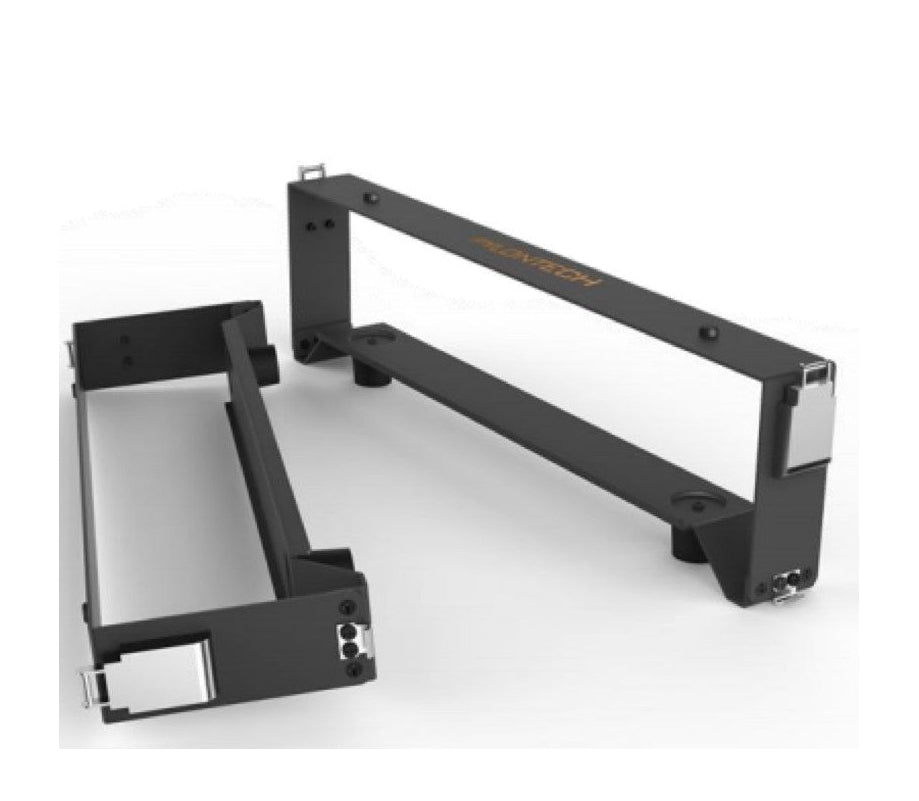

*Optional spacers are available for multiple batteries, see photos

Features:

Type Lithium 48V
Nominal Voltage [V] 48
Capacity 20 hour [Ah] 74
Capacity 100 hour [Ah] 74
Recommended Output Current [A] 74
Recommended Charging Current [A] 37
Maximum Units in Parallel 16
Ambient temperature [C] -10 to +50
Warranty [years] 10 years
Weight [kg] 32



Parameters:

  • Nominal Voltage (Vdc)48
  • Nominal Capacity(Wh) 3552
  • Usable Capacity(Wh) 3374
  • Dimension(mm) 442*420*132
  • Weight(kg) 32
  • Single string quantity(pcs) 16 (expandable)
  • Communication PortRS485,CAN
  • Working Temperature/ °C Charge0~50
  • Shelf Temperature/ °C -20~60
  • Working Temperature/ °C Discharge -10~50
  • Certifications UL1973 / UL1642 / UL9540A / VDE2510-50 / IEC63056 / IEC62619/IEC62040/IEC62477-1 / ICE61000-6-2 / UN38.3
  • Cooling type Natural
  • IP rating of enclosure IP20
  • Humidity 5% ~ 95%(RH) No Condensation
  • Altitude(M) <4000
  • Design life 15+ Years (25°C/77°F)
  • Short current/duration time <4000A/2ms <4000A/2ms <2000A/1ms
  • Cycle Life >6,000 25°C

Charge / Discharge Currents:

  • Max. Continuous 37A
  • Charge/Discharge Current(A) (Recommend)37A
  • (Peak 1) 74A~89A for 60sec
  • (Peak 2 ) 90A~200A for 15sec

Documents:

Due to weight and size, this product has a flat rate $100 shipping cost, with an additional $50 per 48V server battery in the same order.
