Outback Power
2500 W, 24 VDC Inverter/Charger, Sealed, 55A Charger
OutBack Power inverter/chargers are the only choice when you need a true sine wave, powerful, modular and reliable power solution for your home, business or extreme application.

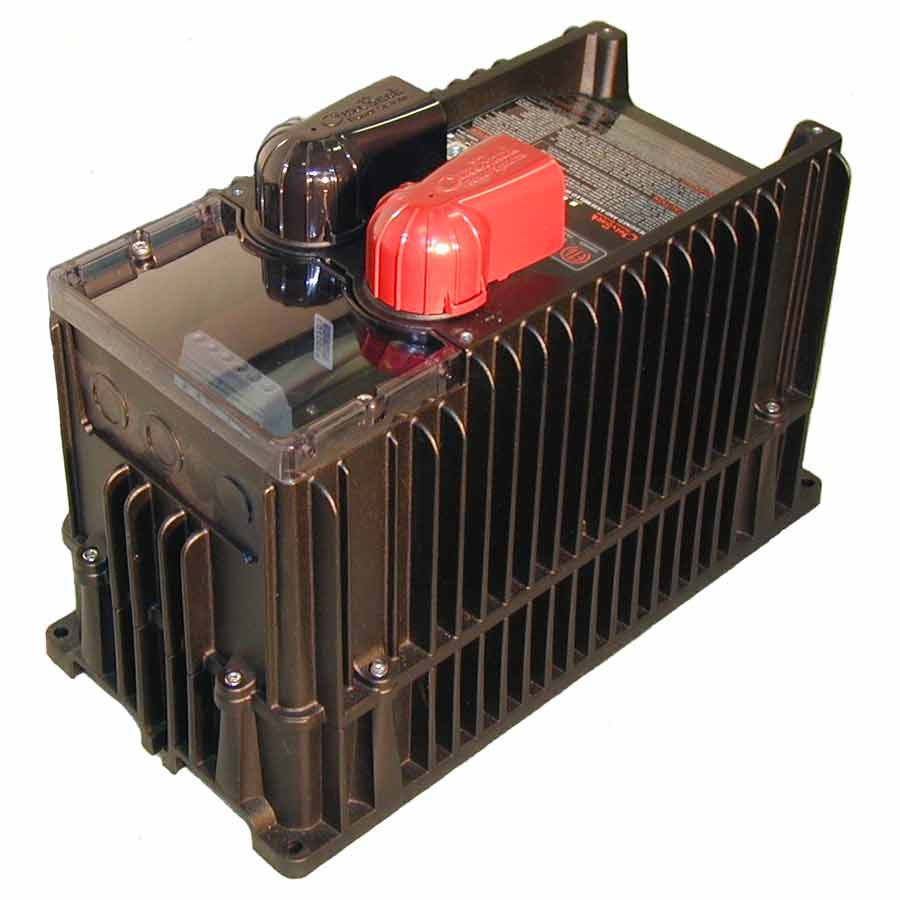

The OutBack FXR2524A inverter/charger is built for harsh environments and can be tailored to specific power conversion requirements of your off-grid and marine application.
FXR inverter/chargers can be paired with a MATE3 to add OPTICS RE to monitor and control system performance from any location. Available in power ranges from 2000W-3600W, multiple units may be stacked and connected with other OutBack Power electronics for more seamless system integration and the ability to function in a wide variety of applications, and system sizes.
Features include:
- Intelligent battery charging
- Programmable for seven different modes, with generator assist
- Modular, stackable design up to nine inverter/chargers for three-phase and 10 inverter/chargers in grid-tied
- Field upgradable software
- Both off-grid and grid-tied functionality in one unit
- Seven programmable modes, including GridZero and Support Mode, and built-in networked communications
- 5 year warranty, optional 10 year warranty
SKU | FXR2524A_EA |
---|---|
Brands | Outback |
Data Sheet | FXR & VFXR A Series Spec Sheet |
Manual | Outback FXR & VFXR A Series Manual |
Output (Watts @ AC Volts) | 2500W @ 120VAC |
DC Input Voltage | 24VDC |
Charger Output (Amps @ DC Volts) | 55A @ 24VDC |
Wave Form | True Sine Wave |
Product Weight | 62 lbs |
Dimensions | 13 x 8.25 x 16.25” |
Warranty | 5 Years (optional 10 years) |
Clearance | No |
