KISAE

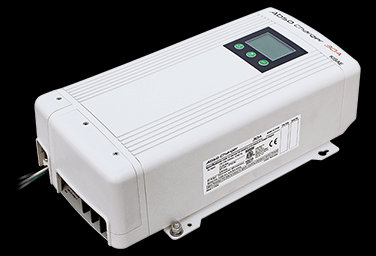

30amp 24VDC Charger
Regular price
$729.00 CAD
Regular price
$748.00 CAD
Sale price
$729.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
30A 24V AC Battery Charger
ABSO Product Line
KISAE’s Abso Chargers are smart, multi-stage 3-bank battery chargers that use advanced algorithms to rapidly and safely replenish large capacity AGM, Gel, Flooded and Lithium batteries to peak efficiency while improving battery life.
Features include:
- Multi-stage charging.
- 3-Bank charging capability with user selectable priority setting.
- Safety tested & Regulatory Approved to cETLus standards for North America (UL & CSA).
- Safety tested & Regulatory Approved to CE standards for UK, EU, and AU/NZ.
- Part of KISAE’s impressive AC battery charger line.
| BATTERY CHARGER | AC 2430 |
| OUTPUT RATING | |
| OUTPUT VOLTAGE | 24V |
| OUTPUT CURRENT (MAXIMUM) | 30A |
| DC OUTPUT | |
| SELECTABLE BATTERY TYPE | Gel, AGM, Flooded, Lithium, Program |
| CHARGE | 28.4 – 31.0V |
| FLOAT | 26.8 – 27.6V |
| EQUALIZE (FLOODED BATTERY ONLY) | 32.0V |
| CHARGING CONTROL | Three / Two Stages, Program |
| DC OUTPUT BANK | Three |
| PARASITIC CURRENT | < 2 mA |
| AC INPUT | |
| AC INPUT VOLTAGE (NOMINAL) | 120, 230, 240VAC |
| AC INPUT OPERATING RANGE | 90 – 265VAC |
| AC INPUT FREQUENCY RANGE | 47 – 63Hz |
| POWER CONSUMPTION (FULL LOAD) | 1050W |
| POWER FACTOR CORRECTION | YES |
| DISPLAY PANEL | |
| DIGITAL DISPLAY | LCD with back lighting |
| DIGITAL INFO | Voltage, Current, Status and Error Code |
| PROTECTION | |
| REVERSE BATTERY | YES |
| COOLING | Forced ventilation |
| OUTPUT SHORT CIRCUIT | YES |
| INGRESS PROTECTION | IP 32 |
| ENCLOSURE | |
| AC INPUT CONNECTION | Hardwire / AC Input Cord (Schuko, UK, Australia plug) |
| DC OUTPUT CONNECTION | Heavy Duty Studs |
| WEIGHT | 8.8 lbs |
| DIMENSION | 14 x 8.1 x 3.8″ |
