Simpliphi

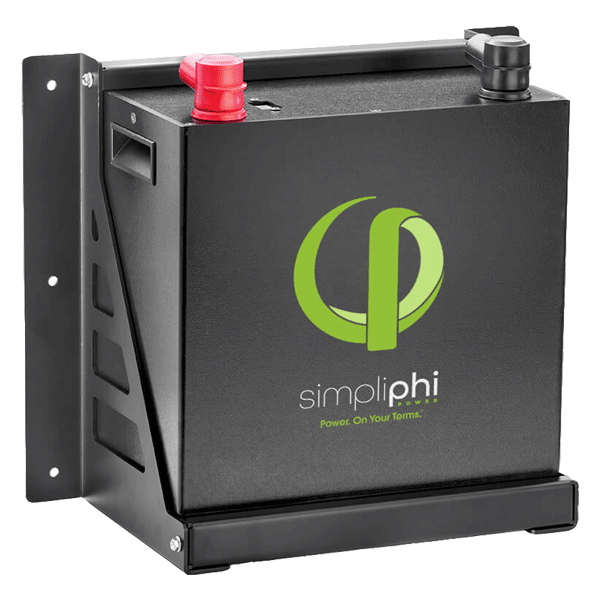

48V, 3.8 kWh, 60A Li-ion Battery

48V, 3.8 kWh, 60A Li-ion Battery

Regular price $4,299.00 CAD
Regular price $4,757.00 CAD Sale price $4,299.00 CAD
Sale Sold out
Shipping calculated at checkout.

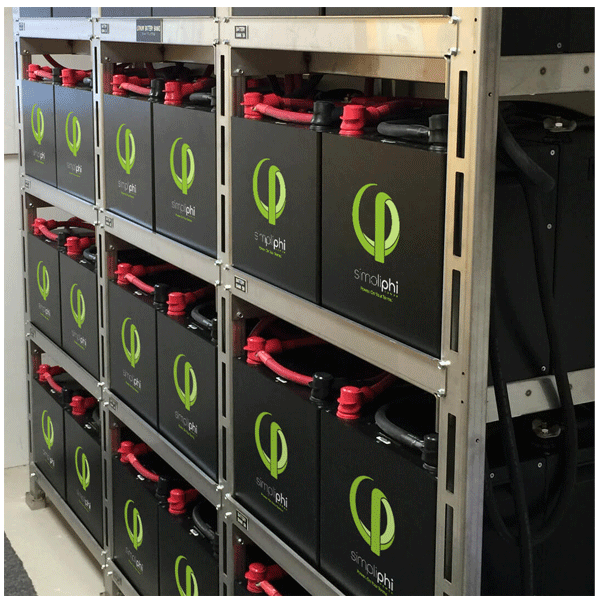

The PHI 3.8™ kWh 60 Amp deep-cycle Lithium Ferro Phosphate (LFP) battery is optimized with proprietary cell architecture, power electronics, BMS and assembly methods. It is modular, light- weight and scalable for installations that range from kWh to MWh. Provides power security and seamless integration of renewable and traditional sources of energy in conjunction with or independent of the grid: net zero, peak shaving, emergency back-up, portable and mobile.

*Wall bracket not included

  • Built-in accessible 80 Amp DC breaker On/Off switch - increases safety and simplifies installations
  • 24V and 48V LFP batteries with proprietary architecture and Battery Management System (BMS)—do not require ventilation, cooling or thermal regulation
  • Compatible with all industry standard inverter/charge controllers
  • Drop in replacement for lead acid
  • LFP is the safest, most environmentally benign Lithium Ion chemistry available—no cobalt, risk ofthermal runaway or fi re
  • No AC or toxic liquid cooling—negligible parasitic drain —long cycle life
  • Non-toxic and non-hazardous recyclable materials
SKU PHI-3.8-48-60_EA
Brands Simpliphi
Data Sheet PHI 3.8kWh Spec Sheet
Manual PHI 3.8kWh Manual
Volts 51.2 V
Capacity (20hr) See Specsheet
Capcity (100hr) See Specsheet
Dimensions 13.5 x 14 x 8 in. (15.5” H w/terminals) / 0.88 ft3 (34.3 x 35.6 x 20.3 cm / 0.025 m3)
Product Weight 78.2 lbs
Warranty 10 Years
