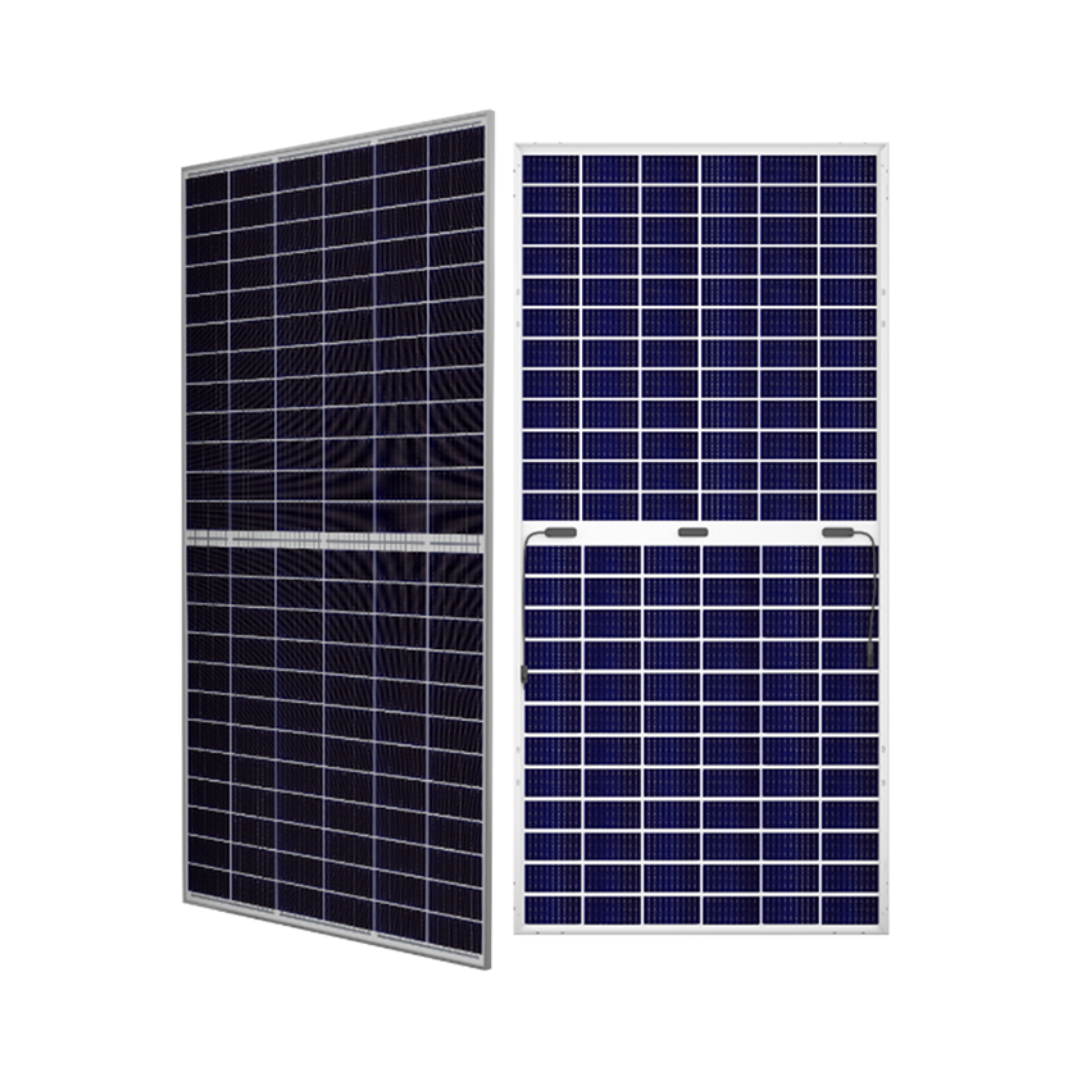

Canadian Solar | 440W Bifacial | CS3W-440MB-AG

Please Contact us for freight quotes for solar panels due to their size and weight.

HIGH POWER BIFACIAL MONO PERC MODULE

CSI Solar Co., Ltd. is committed to providing high quality solar
photovoltaic modules, solar energy and battery storage solutions
to customers. The company was recognized as the No. 1 module
supplier for quality and performance/price ratio in the IHS Module
Customer Insight Survey. Over the past 20 years, it has successfully
delivered over 70 GW of premium-quality solar modules across the
world.

MORE POWER

• Up to 30% more power from the
  back side
• 24 % higher front side power
  than conventional modules
• Low NMOT: 41 ± 3 °C
  Low temperature coefficient (Pmax):
  -0.34 % / °C
• Better shading tolerance

MORE RELIABLE

• Lower internal current,
  lower hot spot temperature
• Minimizes micro-crack impacts
• Heavy snow load up to 5400 Pa,
  wind load up to 3600 Pa

MECHANICAL DATA

• Cell Type Mono-crystalline
• Cell Arrangement 144 [2 X (12 X 6) ]
• Dimensions 2132 ˣ 1048 ˣ 30 mm (83.9 ˣ 41.3 ˣ 1.2 in)
• Weight 28.4 kg (62.6 lbs)
• Front / Back Glass 2.0 mm heat strengthened glass with
• anti-reflective coating
• Frame Anodized aluminium alloy
• J-Box IP68, 3 bypass diodes
• Cable 4.0 mm² (IEC), 12 AWG (UL)
• Cable Length (Including Connector) 400 mm (15.7 in) (+) / 280 mm (11.0 in) (-) or customized length*Connector T6 or T4 series or MC4-EVO2
• Per Pallet 33 pieces


ELECTRICAL DATA

• Operating Temperature-40°C ~ +85°C
• Max. System Voltage 1500 V (IEC/UL) or 1000 V (IEC/UL)
• Module Fire Performance TYPE 29 (UL 61730) or CLASS C (IEC61730)
• Max. Series Fuse Rating 25 A
• Application Classification Class A Power Tolerance
• Power Bifaciality* 70 %

TEMPERATURE CHARACTERISTICS

• Temperature Coefficient (Pmax)-0.34 % / °C
• Temperature Coefficient (Voc) -0.26 % / °C
• Temperature Coefficient (Isc) 0.05 % / °C
• Nominal Module Operating Temperature 41 ± 3°C
