Midnite Solar

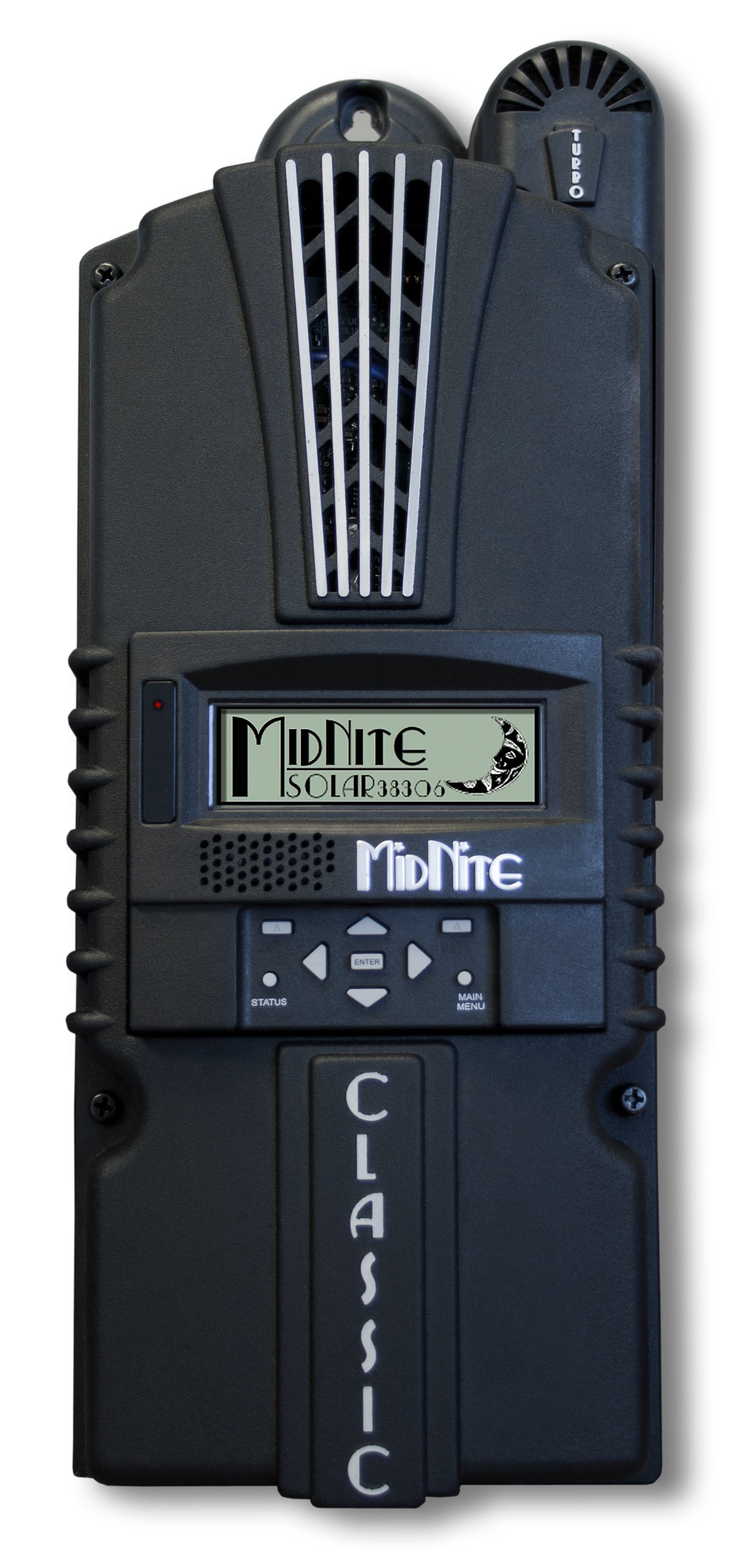

Classic 200V MPPT Charge Controller

Classic 200V MPPT Charge Controller

Regular price $1,236.00 CAD
Regular price Sale price $1,236.00 CAD
Sale Sold out
Shipping calculated at checkout.
FEATURES:
  • Charges Lithium, Flooded Lead Acid, AGM and virtually any other chemistry.
  • 200 operating voltage
  • Max current out: 79 amps
  • ETL listed to UL1741 and CSA
  • Terminals are rated for 75 C
  • Type 1 environmental rating
  • Exclusive HyperVOC extends VOC limits
  • 12-72V battery
  • Built in DC-GFP and Arc Fault
  • Detector
  • Solar, wind and hydro MPPT modes
To ensure proper start up and MPPT operation, the minimum initial PV input voltage should be at least 30% higher than the highest expected battery voltage.

Check out the Classic Power Rating Charts

Ships with MidNite Battery Temperature Sensor (MNBTS) and printed Manual.

Description:

The Classic 200 MPPT Charge Controller has Arc Fault, Ground Fault, free web monitoring, a graphics panel and Solar, Hydro and Wind Modes.

The Classic 200 has a maximum output current of 79 amps, an operating voltage of 200 volts and works with 12 to 72 volt battery systems.

The FREE MidNite Solar Local Application enables you to monitor your Classics over your local network or the Internet. As with the whole Classic Line, the Classic 200 has MidNite’s exclusive HyperVOC which extends VOC limits when needed.

Classic Sizing Tool
The Classics (PDF Presentation)
