Trina Solar

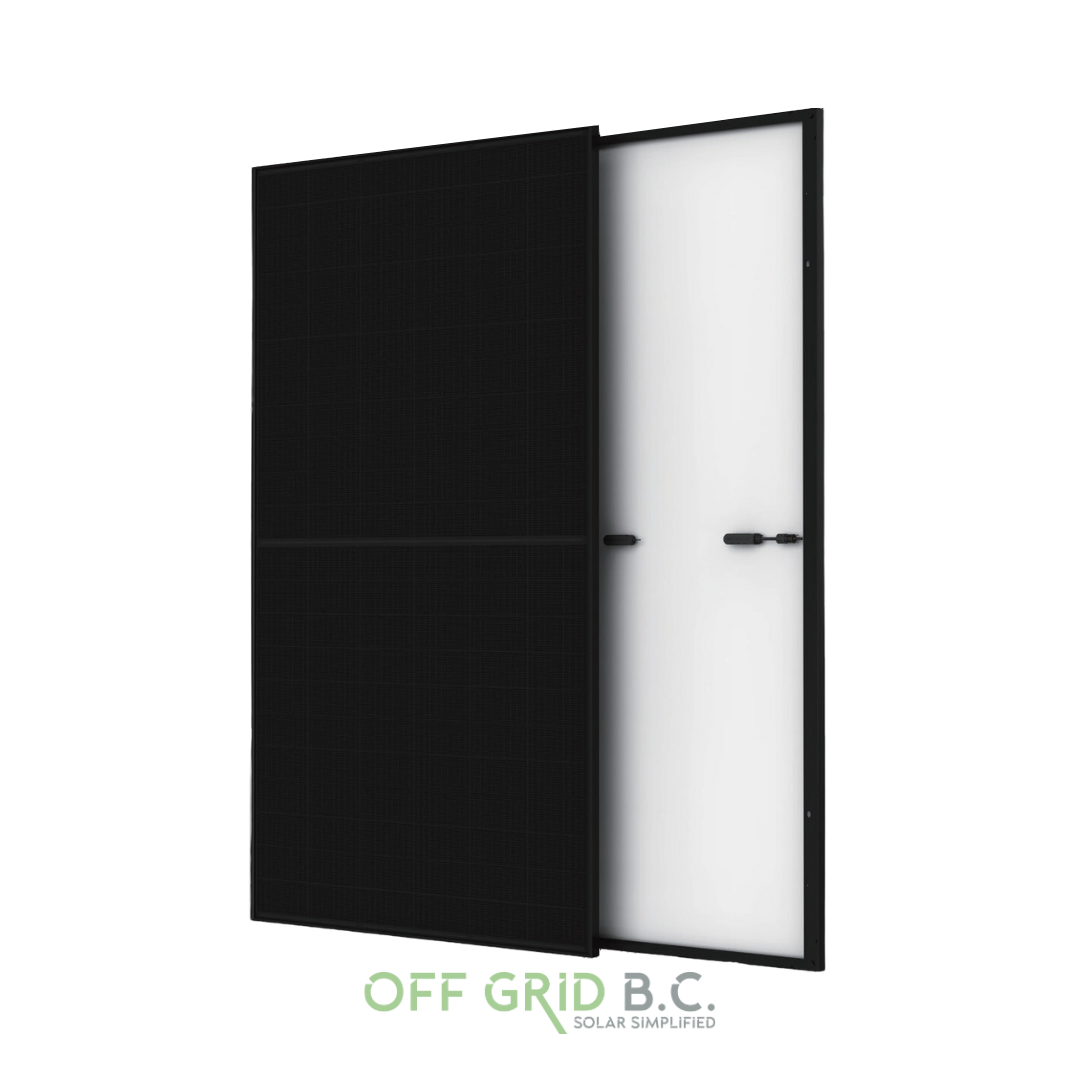

Pallet - Trina Solar 330W Solar Panels | TSM-330DD06M.05(II) | 120 Half-Cell | Mono | 30 Panels

Pallet - Trina Solar 330W Solar Panels | TSM-330DD06M.05(II) | 120 Half-Cell | Mono | 30 Panels

Regular price $8,999.00 CAD
Regular price $9,699.00 CAD Sale price $8,999.00 CAD
Sale Sold out
Shipping calculated at checkout.

**Pallet shipping required for solar panels. A flat rate will be added to your order. Contact us for more options.



Pallet of 31 Trina Solar 330W Panels

High power output

  • Reduce BOS cost with high power bin and module efficiency
  • New cell string layout and split J-box location reduces the energy loss caused by inter-row shading
  • Lower resistance of half-cut cells and increased MBB (Multi Busbar) reflectance ensure higher power

High energy generation, low LCOE

  • Excellent 3rd party validated IAM and low light performance with cell
  • Low Pmax temp coefficient (-0.36%) increases energy production
  • Better anti-shading performance and lower operating temperature

Outstanding visual appearance, easy to install

  • Designed for superior rooftop aesthetics
  • Thinner wires give a eye catching all black look
  • Safe and easy to transport, handle, and install

Certified to perform in highly challenging environments

  • High PID resistance through cell process and module material control
  • Resistant to salt, acid, sand, and ammonia
  • Over 30 in-house tests (UV, TC, HF etc)
  • Certified to 5400 Pa positive load and 2400 Pa negative load

Founded in 1997, Trina Solar is the world's leading total solution provider for solar energy. With local presence around the globe, Trina Solar is able to provide exceptional service to each customer in each market and deliver our innovative, reliable products with the backing of Trina as a strong, bankable brand. Trina Solar now distributes its PV

products to over 100 countries all over the world. We are committed to building strategic, mutually beneficial collaborations with installers, developers, distributors and other partners in driving smart energy together.



Type Monocrystalline 60 cells
Nominal Power [W] 330
Nominal Voltage [V] 24
Short Circuit Current (Isc) [A] 10.4
Open Circuit Voltage (Voc) 40.6
Optimal Current (Imp) [A] 9.76
Optimal Voltage (Vmp) 33.8
Temperature Coefficient Pmax -0.34
Temperature Coefficient Voc -0.25
Maximum Fuse Rating 20
Maximum Voltage [VCC] 1000
Height [cm] 169
Width [cm] 99.6
Thickness [cm] 3.5
Weight [kg] 18.0
Pallet Dimensions [cm] 173.5 x 114 x 114.8
Weight per pallet [kg] 603.5
Panels per Pallet 31



Spec Sheet
