Morningstar

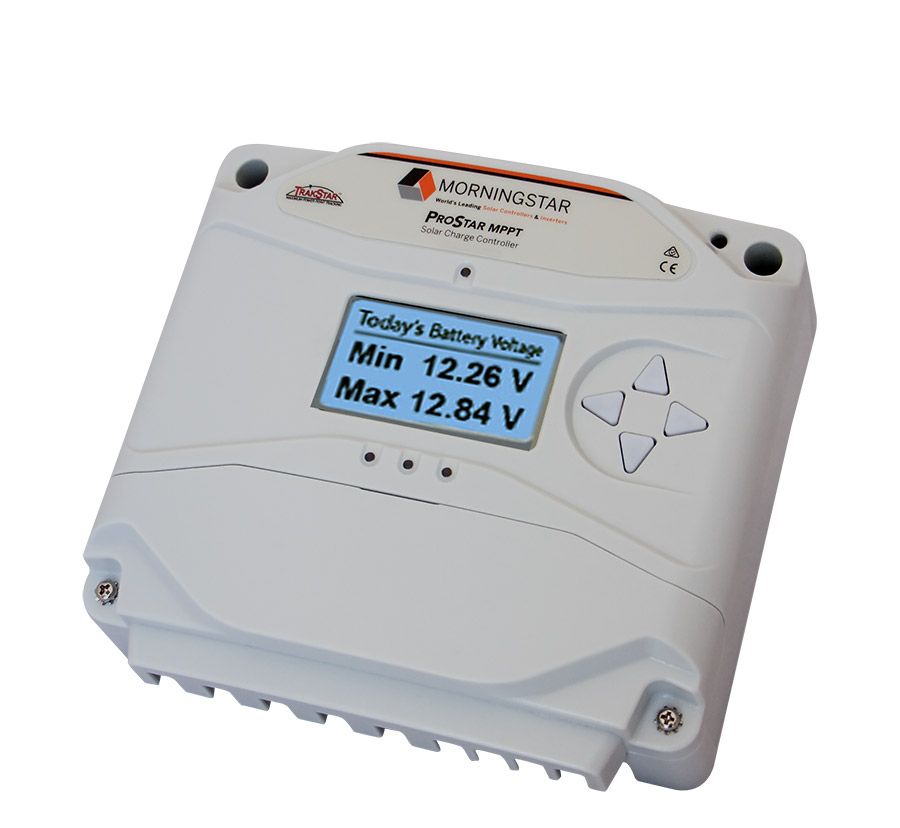

ProStar-40 With Meters, MPPT
ProStar-40 With Meters, MPPT
Regular price
$869.00 CAD
Regular price
$922.00 CAD
Sale price
$869.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The ProStar MPPT solar controller is an advanced maximum power
point tracking (MPPT) battery charger for off-grid photovoltaic (PV)
systems with PV array max power (Pmp) up to 1400 watts. All versions
have TrakStar™Technology and include load control. The controller
allows multiple modules in series for 12V and 24V battery systems.
Detailed battery programming options allow for advanced battery support
for the latest Lithium, Nickel Cadmium, and Lead Acid battery types.
Note: Some battery types require a compatible battery management system.
Mechanical Specifications
point tracking (MPPT) battery charger for off-grid photovoltaic (PV)
systems with PV array max power (Pmp) up to 1400 watts. All versions
have TrakStar™Technology and include load control. The controller
allows multiple modules in series for 12V and 24V battery systems.
Detailed battery programming options allow for advanced battery support
for the latest Lithium, Nickel Cadmium, and Lead Acid battery types.
Note: Some battery types require a compatible battery management system.
PROSTAR MPPT™ SOLAR CONTROLLER WITH MAXIMUM POWER POINT TRACKING KEY FEATURES AND BENEFITS
• Approved for use in hazardous locations: UL/CSA Class1,
Division 2, Groups A-D and ATEX/IECEx Zone 2, Gas
Group IIC
• High Reliability
Conformally coated circuit board and corrosion resistant
terminals
• Maximizes Energy Harvest
Using TrakStar MPPT Technology to determine and adjust to
the true maximum power point as solar insolation changes
throughout the day
• High Efficiency
At low, medium, and high power levels
• Data Logging
Up to 256 days of detailed power and load data
• Low Noise Design
Meets US Federal Communications Commission Class B
specifications
• Automatic PV Based Lighting Control
Field adjustable, multi-event load control enables powerful
options for PV lighting systems
• MODBUS Communications
Solar Industry Standard MODBUS communications protocol
allows for easy programming, control, and remote data access
Mechanical Specifications- Dimensions:
- Standard:
- 20 x 17 x 7 cm / 7.9 x 7.6 x 2.8 in
- w/ Wire Box:
- 20 x 28.5 x 9.2 cm / 7.9 x 11.2 x 3.6 in
- Weight:
- Standard: 1.4 kg / 3.1 lbs
- w/ Wire Box: 1.8 kg / 4.0 lbs
- Wire Size Range - Power terminals:
- 2.5 - 35 mm2 / 14 - 2 AWG****
- Battery/Temperature:
- sense: 0.25 - 1.0 mm2 / 24 - 16 AWG
- Knockouts (wiring box option):
- M20, 1/2”, 1” (trade sizes)
- Enclosure: IP20, Type 1
