Pytes 48V100R LFP Server Rack battery | 100Ah | 5.12kWh |

Pytes 48V100R LFP Server Rack battery | 100Ah | 5.12kWh |

Regular price $2,850.00 CAD
Regular price Sale price $2,850.00 CAD
Sale Sold out
Shipping calculated at checkout.

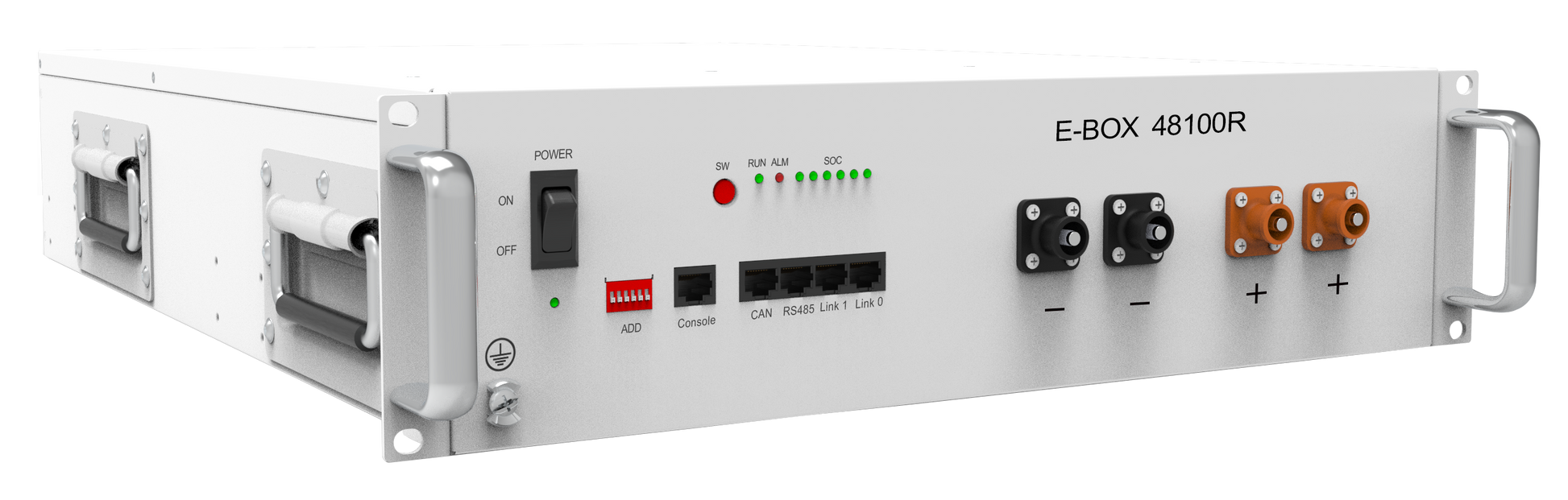

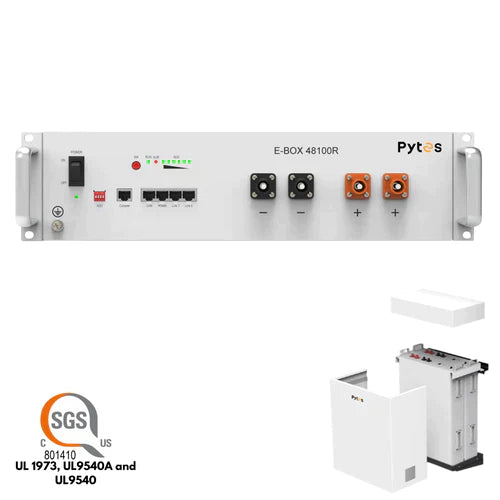

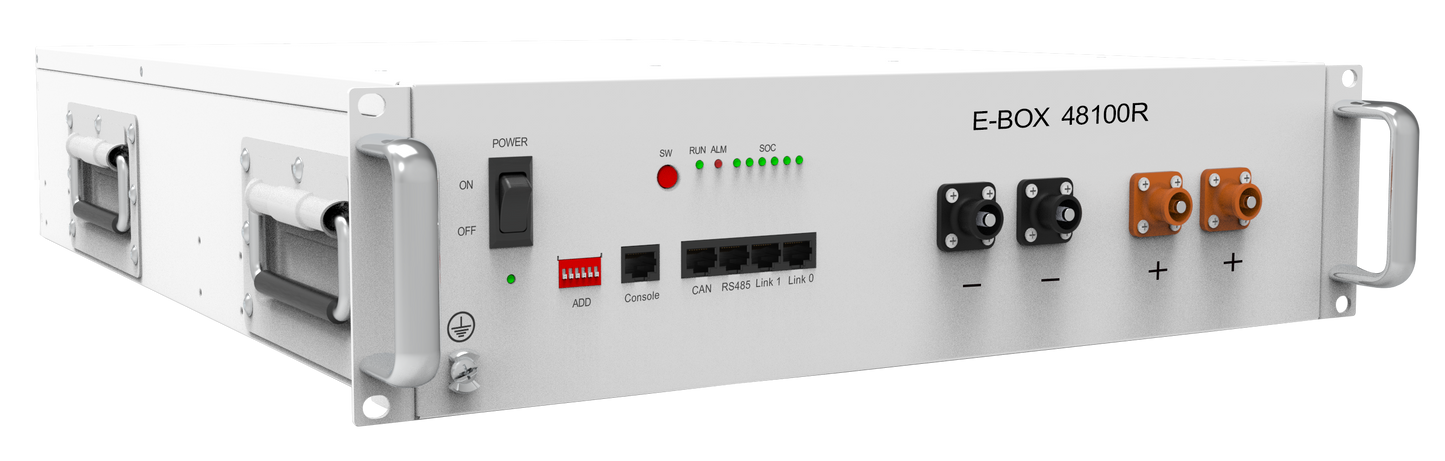

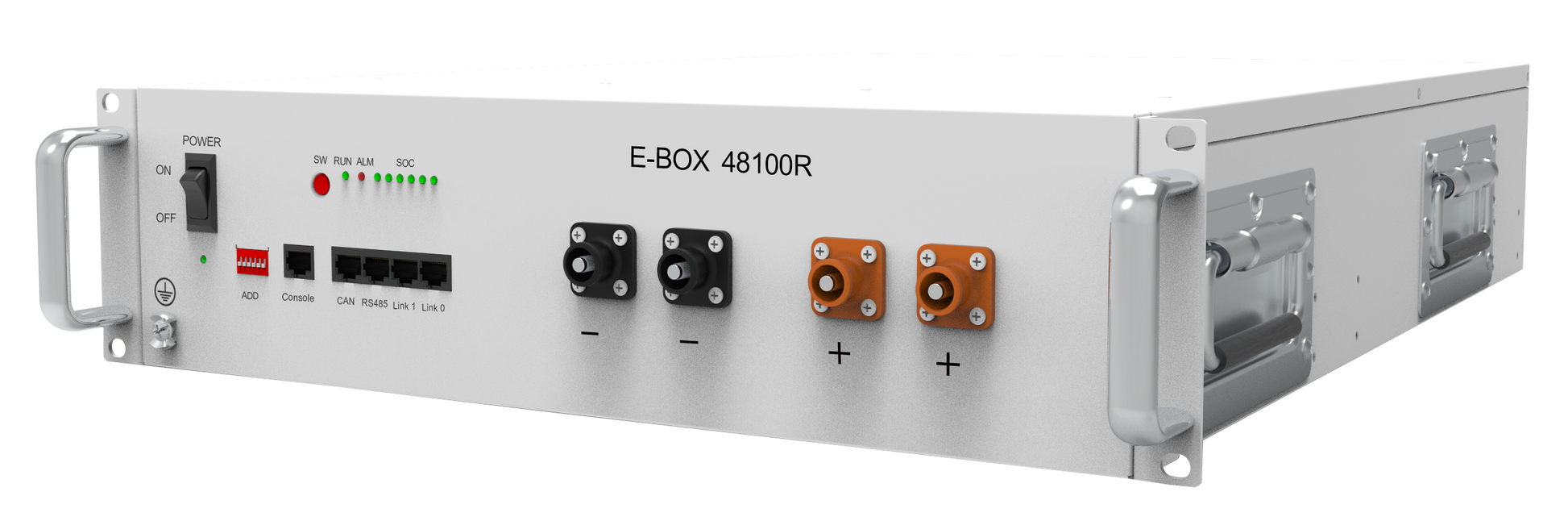

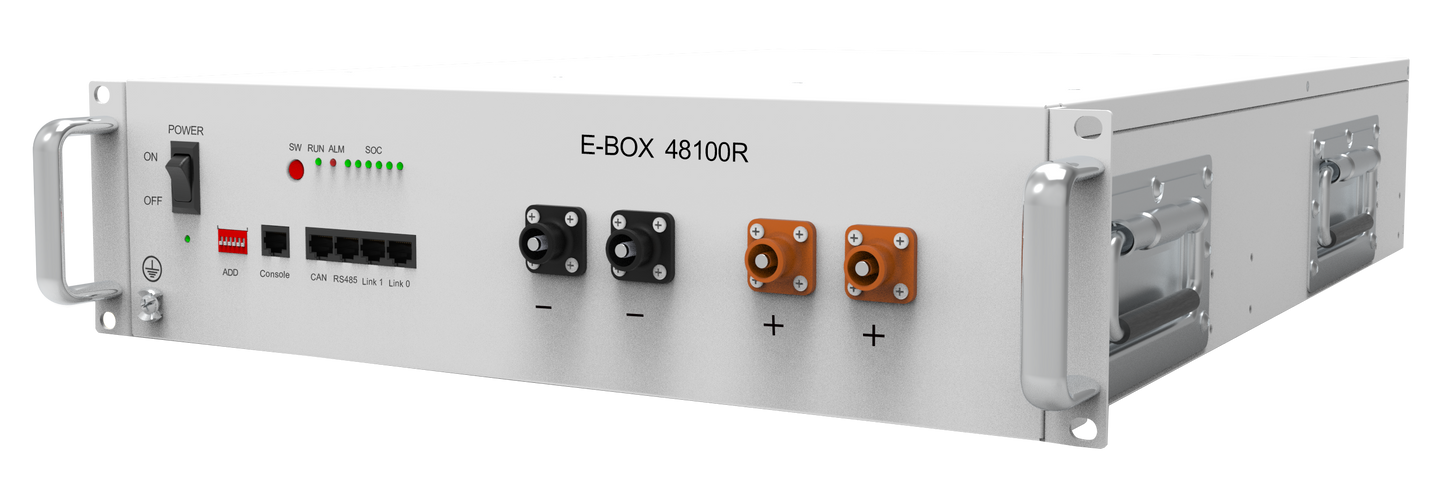

E-BOX-48100R

E-BOX series, the new generation LFP battery for home energy storage system. It provides safe,well-designed and high-performance standard LFP battery pack for you. The battery pack is compact, easy to install, free of maintenance. Great for home, commercial and industrial applications.

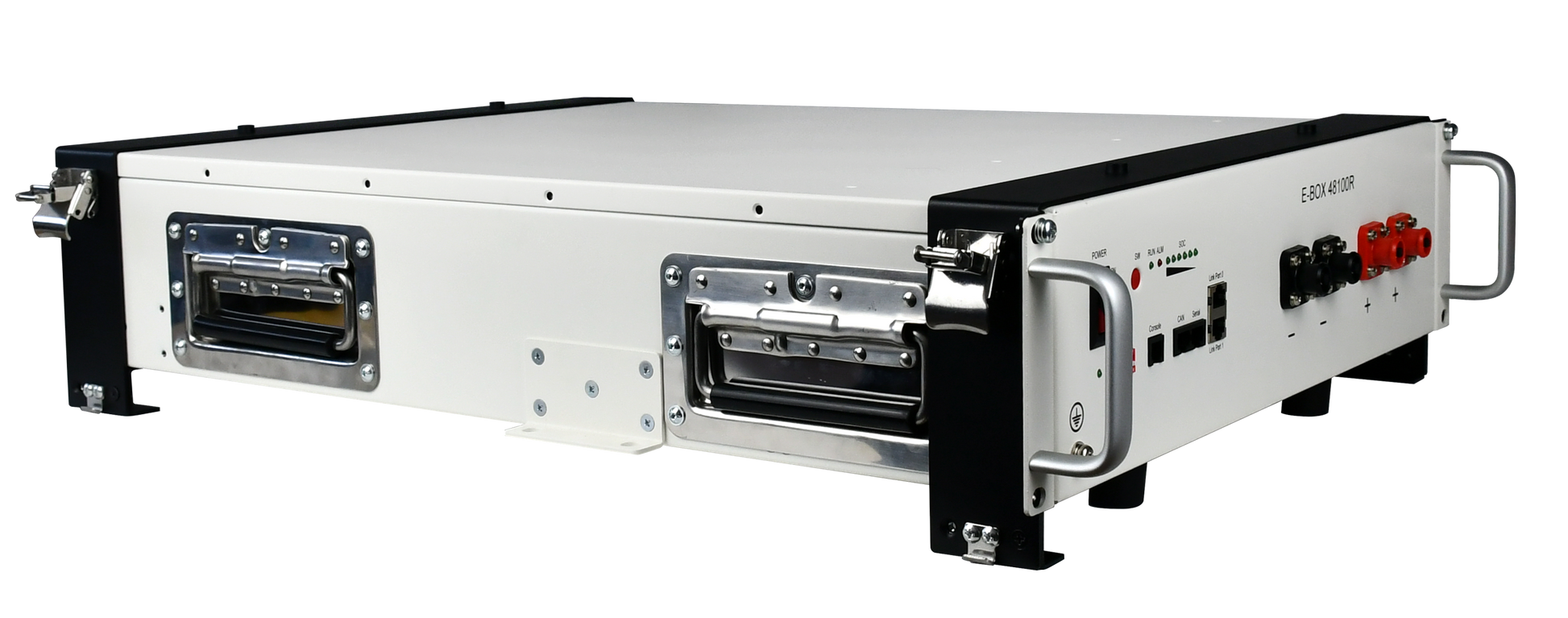

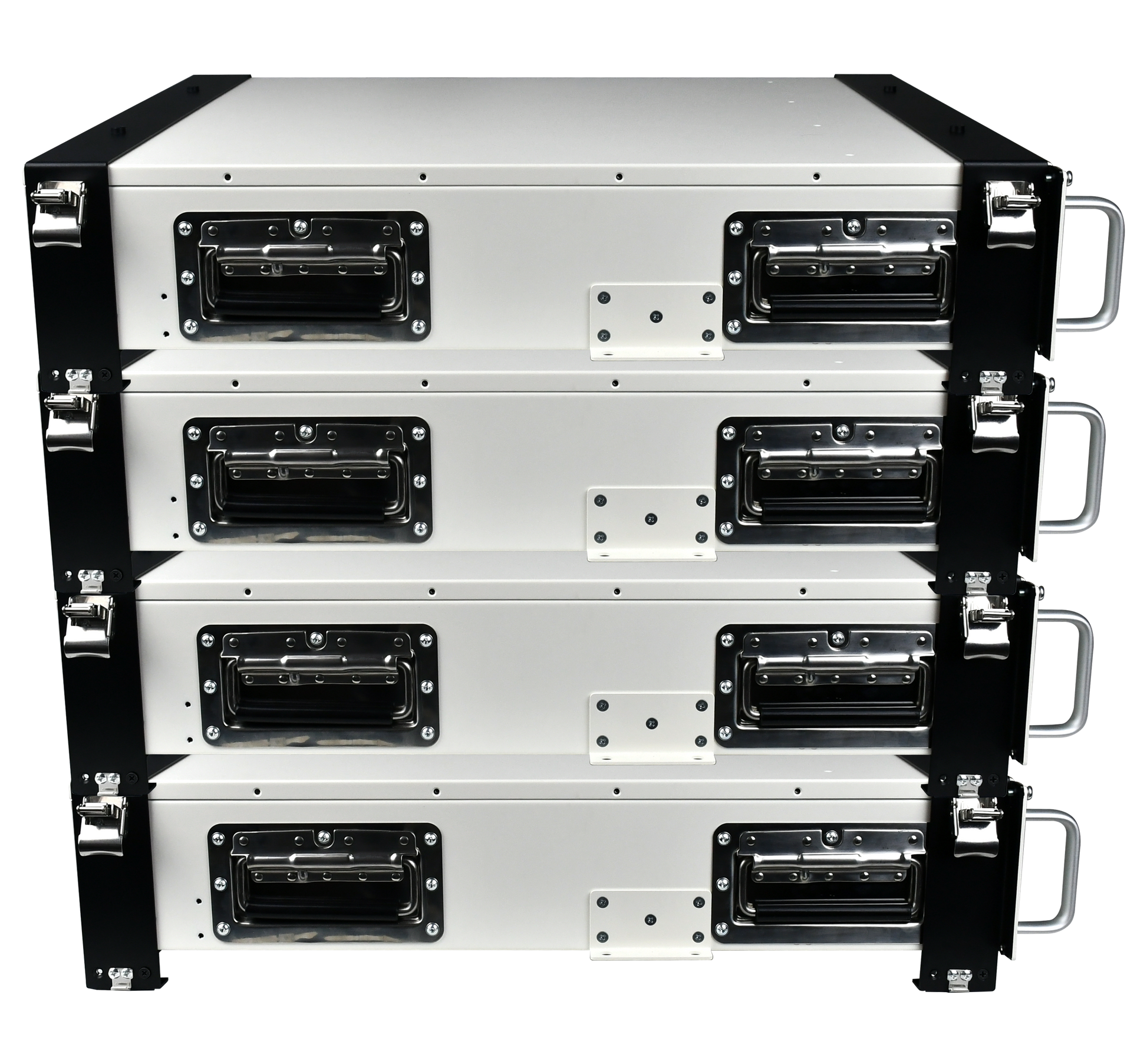

*Optional Wall mount cabinets and stacking brackets are available, see photos

Chemistry
 LFP
Nominal Voltage
51.2V
Voltage Range
47.5V-58V
Nominal Capacity
100Ah
Nominal Energy
5.12kWh
Unit Dimension
L440mm* W620mm* H117mm (2.6U)
Unit Weight
51kg
Standard Charge Current
50A
Maximum Charge Current
50A
Standard Discharge
50A
Maximum Discharge Rate
50A
Round-Trip Efficiency
≥95%
Communication Protocol
RS232, RS485, CAN
Cycle Life
≥6000cycles
Calendar Life
≥10years
Operating Temperature
-10°C~50°C
Connect style
Parallel
Storage Temperature
Within 1month:
-20~55°C,
1-3months: 0~35°C,
3-12months: 20~25°C



Datasheet

Installation Guide
