Hanwha

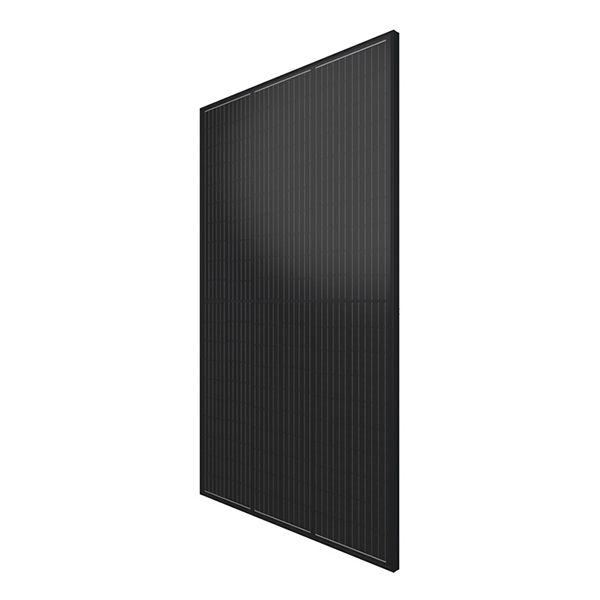

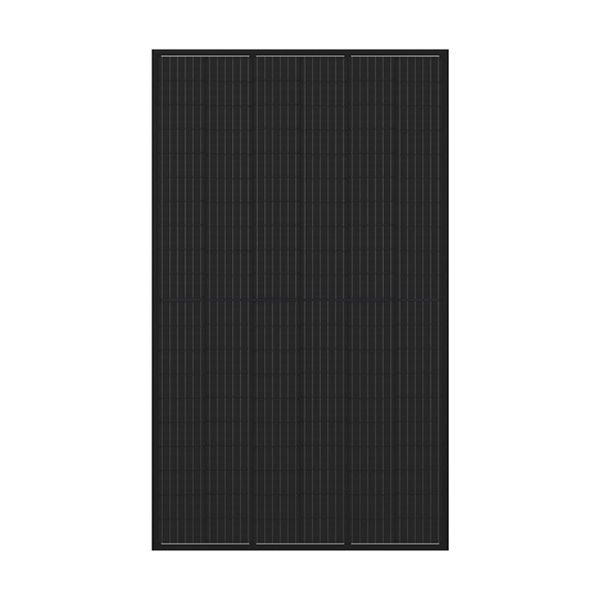

QCELL - 340W | Q.PEAK DUO BLK-G6+ 340 BLK/BLK/BLK

**Pallet shipping required for solar panels. A flat rate will be added to your order. Contact us for more options.

QCELL 340W Features:



• Q.ANTUM TECHNOLOGY: LOW LEVELISED COST OF ELECTRICITY: Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 19.5 %.
• INNOVATIVE ALL-WEATHER TECHNOLOGY: Optimal yields, whatever the weather with excellent low-light and temperature behaviour.
• ENDURING HIGH PERFORMANCE: Long-term yield security with Anti LID Technology, Anti PID Technology, Hot-Spot Protect and Traceable Quality Tra.Q™.
• EXTREME WEATHER RATING: High-tech aluminium alloy frame, certified for high snow (5400 Pa) and wind loads (4000 Pa).
• A RELIABLE INVESTMENT: Inclusive 12-year product warranty and 25-year linear performance warranty.
• STATE OF THE ART MODULE TECHNOLOGY: Q.ANTUM DUO combines cutting edge cell separation and innovative wiring with Q.ANTUM Technology.



SKU	QCELL-340-60BLK_EA
Brands	Qcells
Data Sheet	Hanwha Q.PEAK DUO BLK-G6 Spec Sheet
Manual	No
Maximum Power (Pmax)	340W
Maximum Power Voltage (Vmp)	33.94V
Maximum Power Current (Imp)	10.02A
Short Circuit Current (Isc)	10.52A
Dimensions	68.50" x 40.55" x 1.26" (including frame) | 1740 mm × 1030 mm × 32 mm
Certifications	CSA
Maximum Fuse Rating	20A
Electrical Connection	MC4
Warranty	25 years
