Hanwha

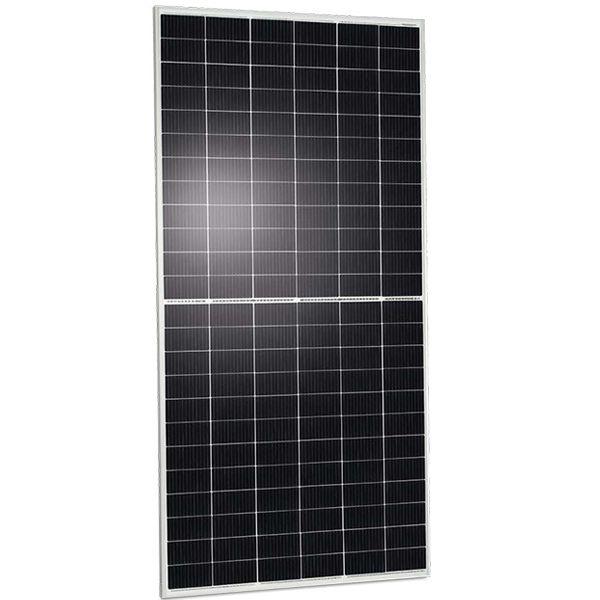

QCELL - 475W, 78 Cell | Mono | Split Cell Module
QCELL - 475W, 78 Cell | Mono | Split Cell Module
Regular price
$419.00 CAD
Regular price
$468.00 CAD
Sale price
$419.00 CAD
Unit price
per
Shipping calculated at checkout.
**Pallet shipping required for solar panels. A flat rate will be added to your order. Contact us for more options.
Couldn't load pickup availability
NO LONGER AVAILABLE
*Special Freight Required, please contact us
The new Q.PEAK DUO solar module from Q CELLS impresses thanks to innovative Q.ANTUM DUO Technology, which enables particularly high performance on a small surface. Q.ANTUM’s world-record-holding cell concept has now been combined with state-of-the-art circuitry half cells and a six-busbar design, thus achieving outstanding performance under real conditions — both with low-intensity solar radiation as well as on hot, clear summer days.
Features -
- Q.ANTUM TECHNOLOGY: LOW LEVEL COST OF ELECTRICITY - Higher yield per surface area, lower BOS costs, higher power classes, and an efficiency rate of up to 20.3 %.
- INNOVATIVE ALL-WEATHER TECHNOLOGY - Optimal yields, whatever the weather with excellent low-light and temperature behaviour.
- ENDURING HIGH PERFORMANCE - Long-term yield security with Anti LID Technology, Anti PID Technology1, Hot-Spot Protect and Traceable Quality Tra.Q™.
- EXTREME WEATHER RATING - High-tech aluminium alloy frame, certified for high snow (5400 Pa) and wind loads (2400 Pa).
- A RELIABLE INVESTMENT - Inclusive 12-year product warranty and 25-year linear performance warranty2.
- STATE OF THE ART MODULE TECHNOLOGY - Q.ANTUM DUO combines cutting edge cell separationand innovative wiring with Q.ANTUM Technology.
| SKU | QCELL-475-78DUO_EA |
|---|---|
| Brands | Qcells |
| Data Sheet |
 Qcells Duo 475W Spec Sheet
|
| Manual | No |
| Maximum Power (Pmax) | 475 W |
| Maximum Power Voltage (Vmp) | 44.54 V |
| Maximum Power Current (Imp) | 10.66 A |
| Short Circuit Current (Isc) | 11.24 A |
| Dimensions | 2216 mm × 1045 mm × 35 mm (including frame) |
| Certifications | CSA, CE |
| Maximum Fuse Rating | 20 A |
| Electrical Connection | MC4 Type |
| Warranty | 25 Year linear performance guarantee |
