S-5 Standing Seam Clamp Type N | Mounting Bracket for solar panels on metal roofs

S-5 Standing Seam Clamp Type N | Mounting Bracket for solar panels on metal roofs

Regular price $11.00 CAD
Regular price Sale price $11.00 CAD
Sale Sold out
Shipping calculated at checkout.

Please allow 5-10 days for shipping on this item.

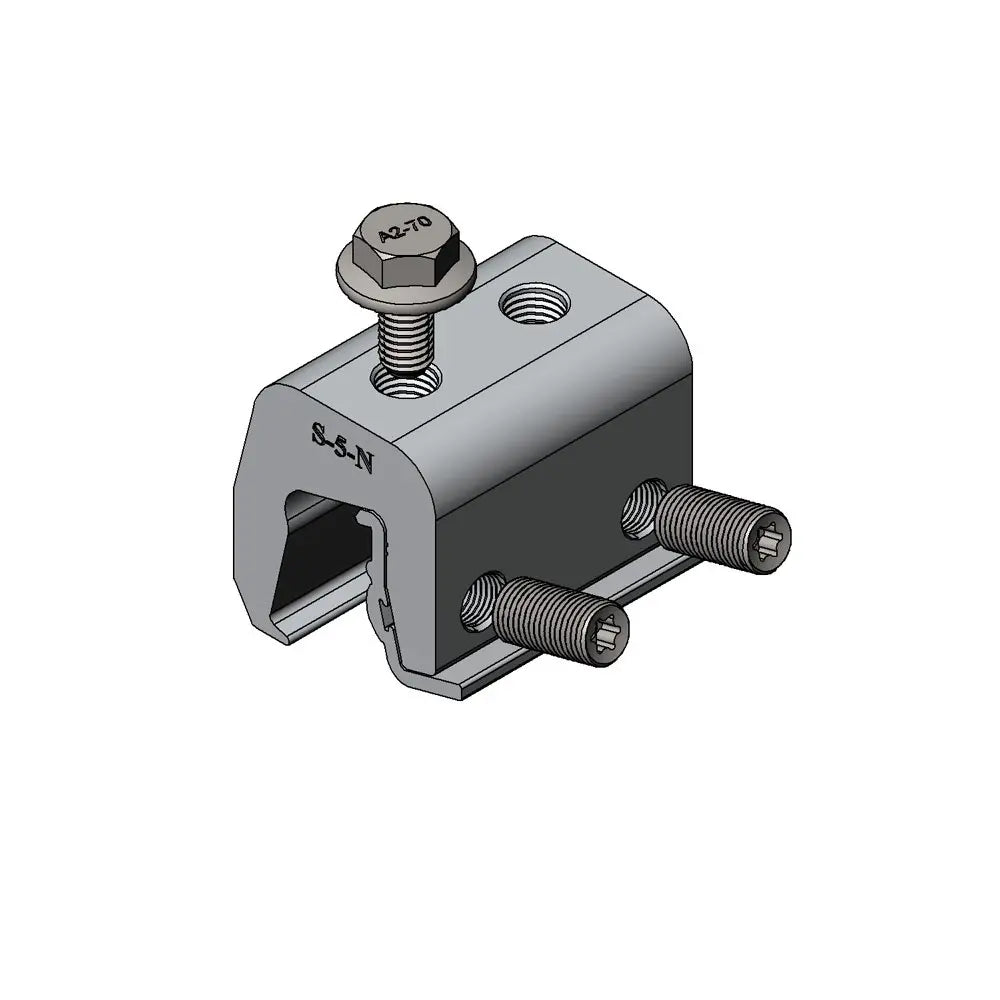

The S-5-N (“N” stands for nail strip) is a non-penetrating, standing seam metal roof (SSMR) clamp.

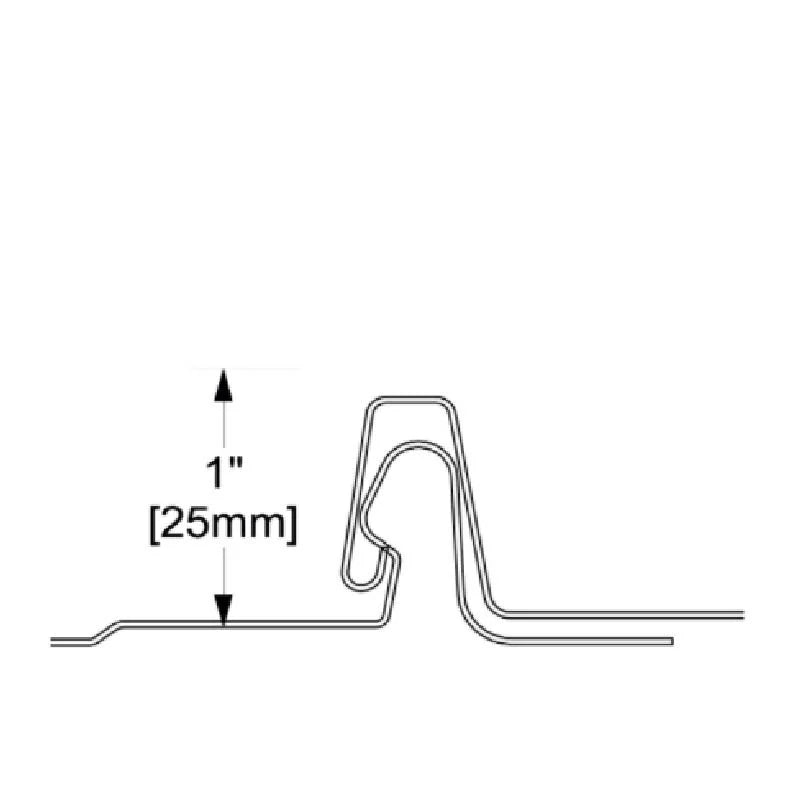

The N fits popular 1″ nail strips, such as: Taylor Metals’ Easy Lock™, ASC Building Products’ Skyline Roofing®, McElroy Metals’ Meridian, New Tech Machinery’s FF100 and roofing types with similar profiles.

For nail strip profiles with 1.5” seam height, see “S-5-N 1.5.

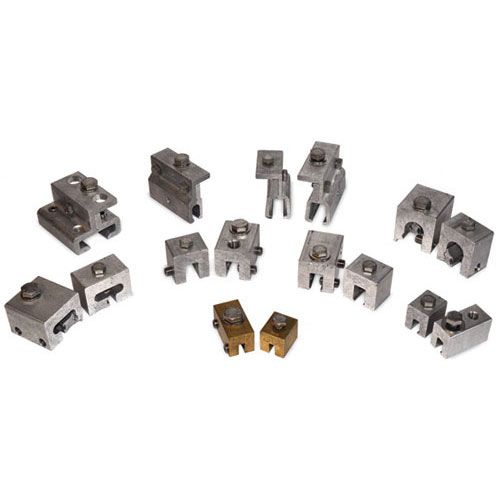

Minis Available

The N Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

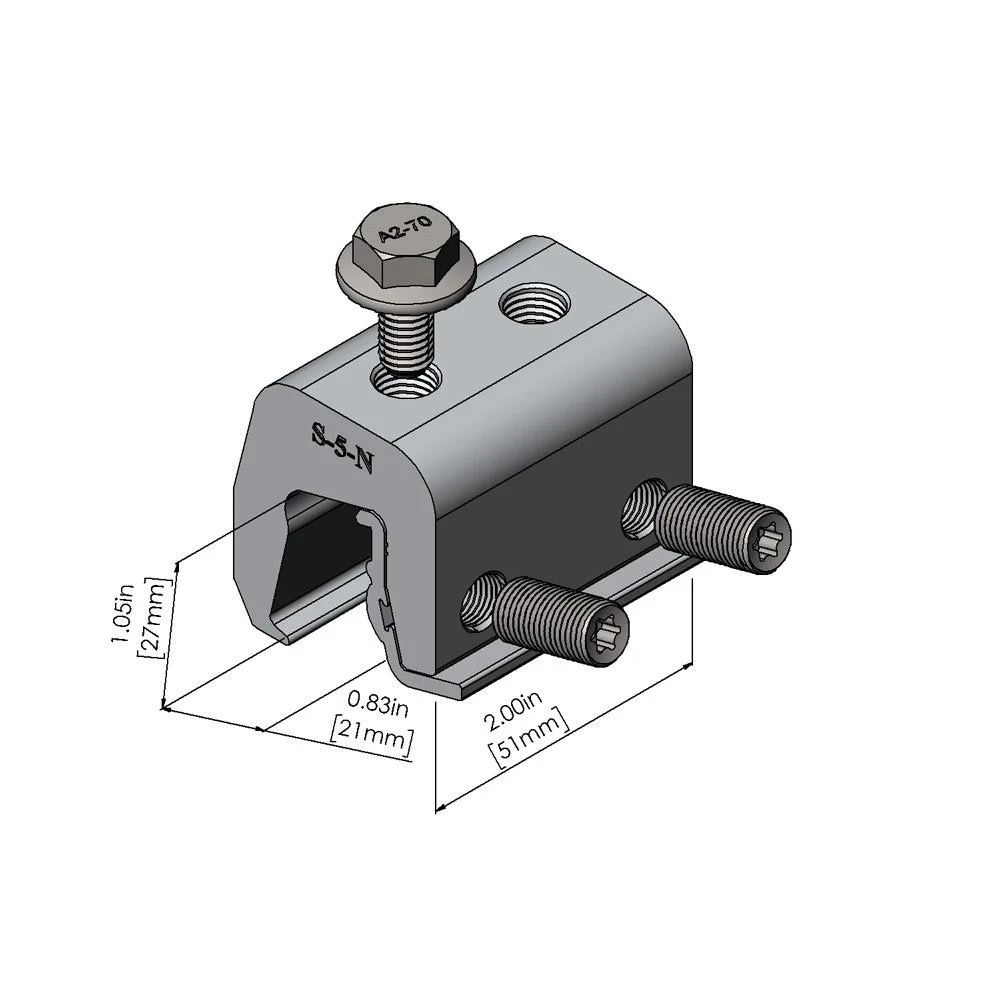

Choose the N to mount to nail flange metal roof profiles with a base of rib dimension ≤ .82” (20 mm). Check also the S-5-NH 1.5 for matching to other seam dimensioning, such as NewTech FF150 and VicWest Prestige. Be sure to check out the many other features on the clamp overview page.
