S-5 Standing Seam Clamp Type N 1.5 | for mounting solar panels on metal roofs

S-5 Standing Seam Clamp Type N 1.5 | for mounting solar panels on metal roofs

Regular price $24.00 CAD
Regular price Sale price $24.00 CAD
Sale Sold out
Shipping calculated at checkout.

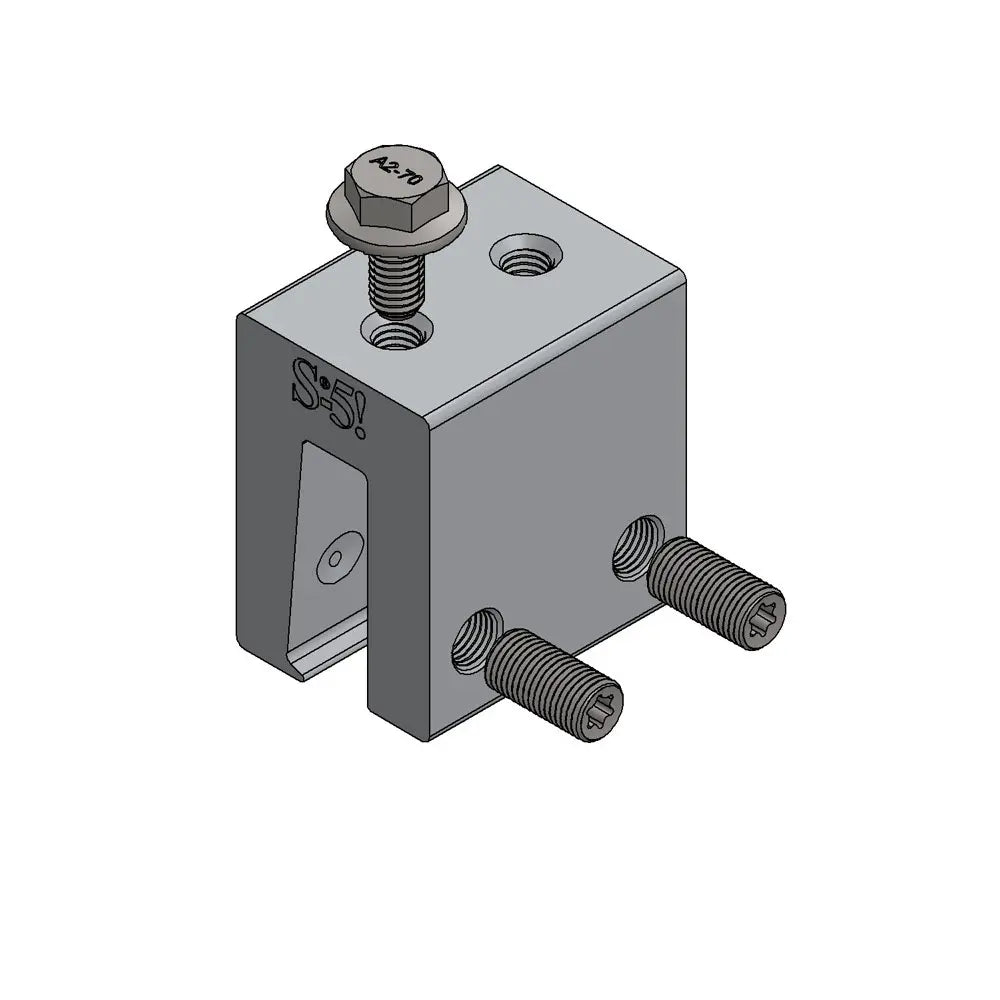

The S-5-N 1.5 (“N” stands for nail strip) is a non-penetrating, standing seam metal roof (SSMR) clamp.

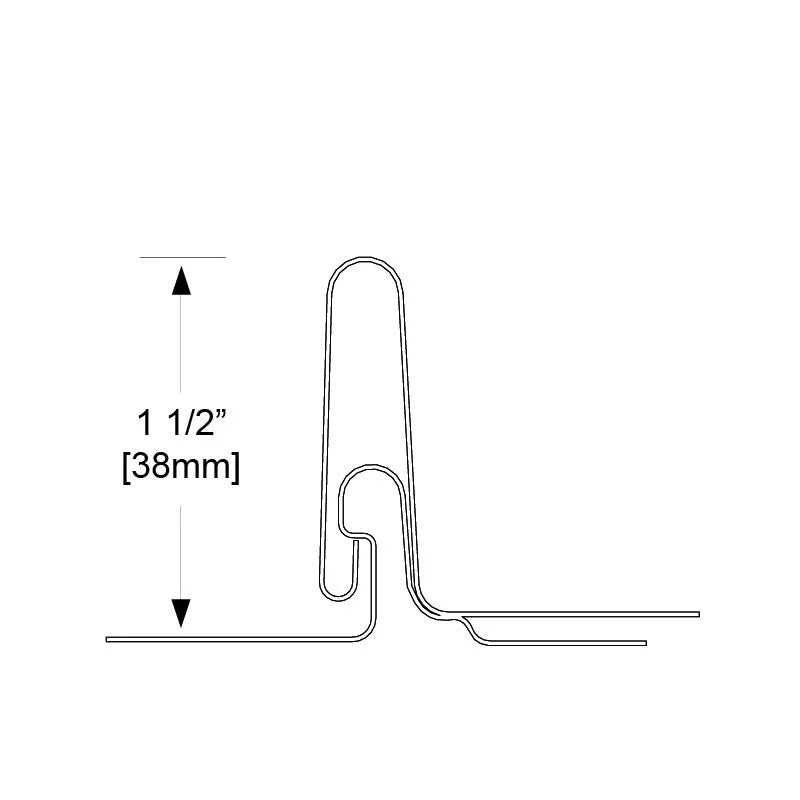

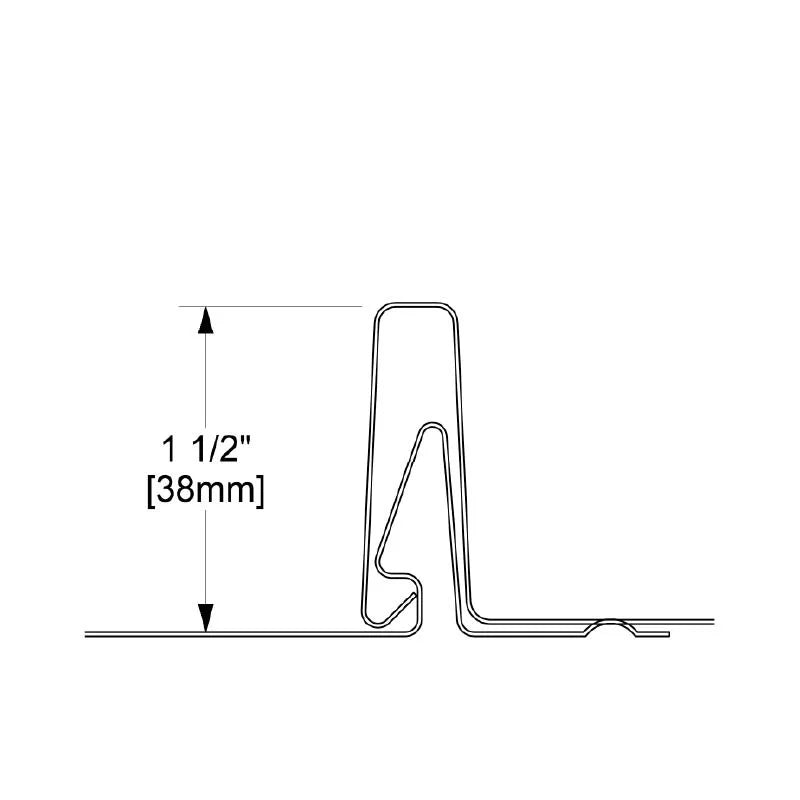

The N 1.5 is the right choice for 1.5″ (38 mm) nail strips, such as: Bridger Steel 1.5” Tru Snap, Schlebach 1.5” NailStrip, Sheet Metal Supply NS 1.5”, Sheffield Metals SMI 1.5” and roofing types with similar profiles.

(For nail strip profiles with 1” seam height, see “S-5-N.”)

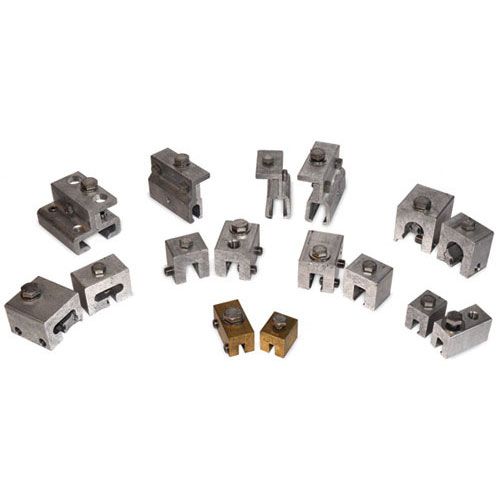

Minis Available

The N 1.5 Mini clamp is a more economical solution for lighter-duty attachments where Herculean holding strength is not required.

All standard and Mini clamps undergo rigorous load testing. Negative load normal-to-seam testing (pull-up) is performed on all Mini clamps, and parallel-to-seam testing (drag load) is performed on all standard clamps.

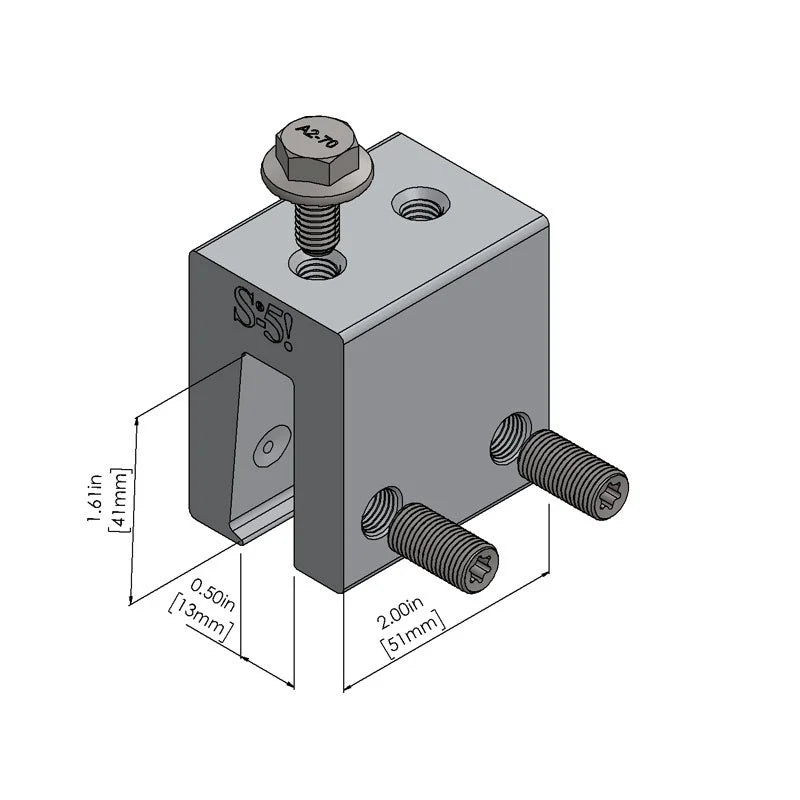

Choose the N 1.5 to mount to nail flange metal roof profiles with a seam base dimension ≤ .50” (12.7 mm). (For nail strip profiles outside this dimension, please see the “S-5-NH 1.5”).

Be sure to check out the many other features on the clamp overview page.
