Victron Energy

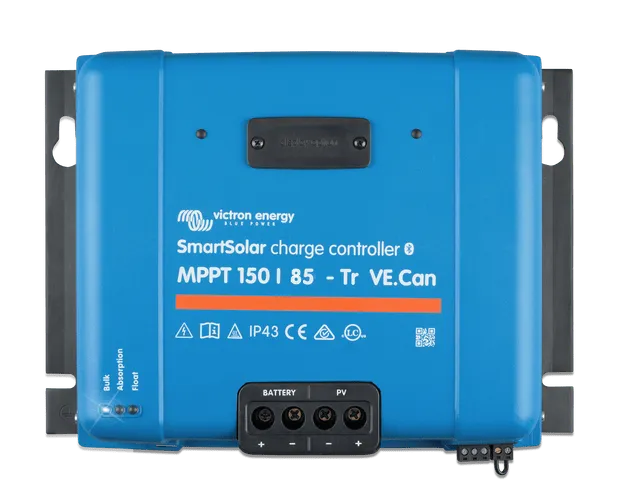

SmartSolar MPPT 150/85 | 12/24/48Volt | 150Voc Input | 85A Output | Screw terminals
SmartSolar MPPT 150/85 | 12/24/48Volt | 150Voc Input | 85A Output | Screw terminals
Regular price
$949.00 CAD
Regular price
$999.00 CAD
Sale price
$949.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

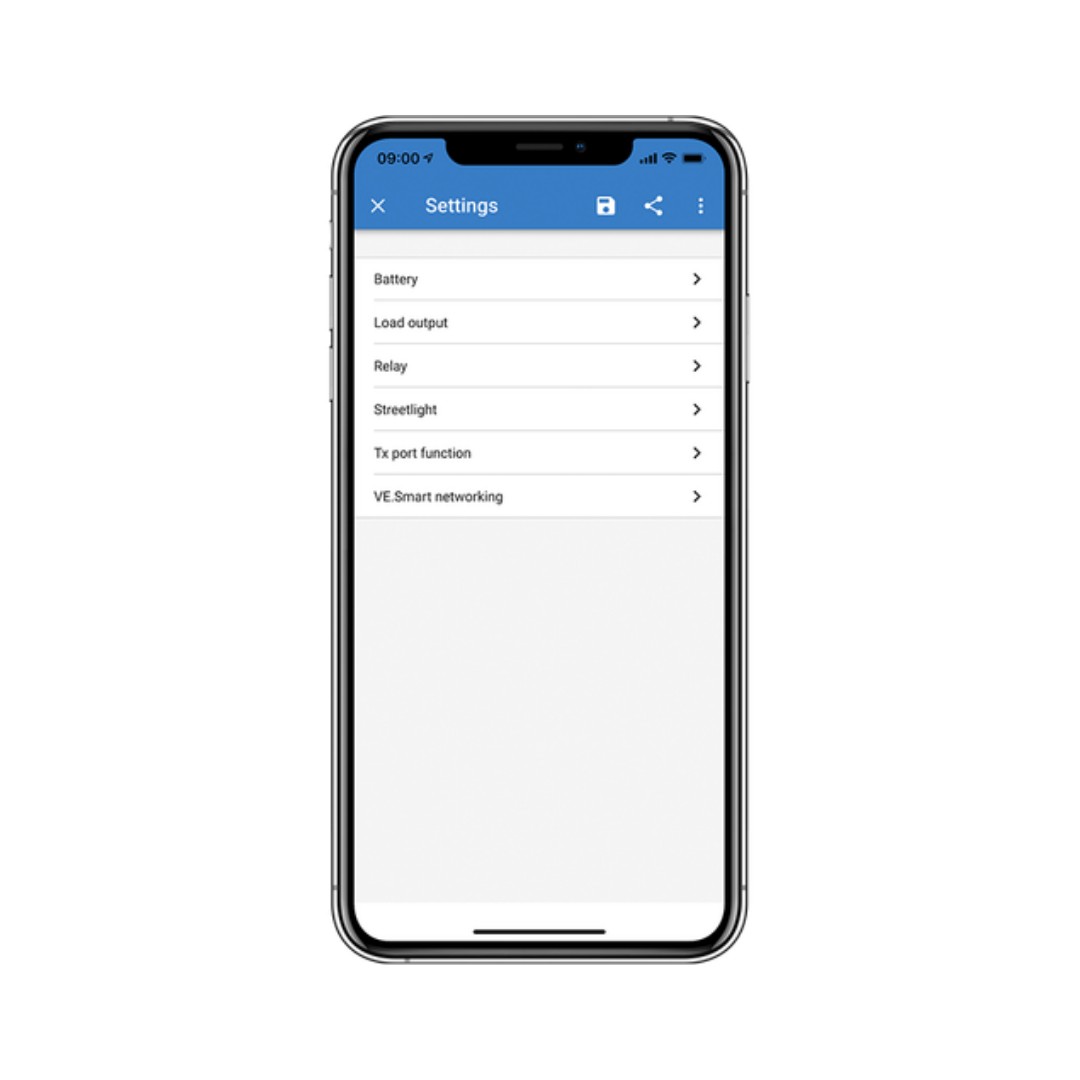

Built in Bluetooth
A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.
The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.
| Type | MPPT |
| Battery voltage [V] | 12, 24, 48 |
| Maximum Current 12V Battery [A] | 85 |
| Maximum Current 24V Battery [A] | 85 |
| Maximum Current 48V Battery [A] | 85 |
| Max. PV Array @ 12V [W] | 1200 |
| Max. PV Array @ 24V [W] | 2400 |
| Max. PV Array @ 48V [W] | 4900 |
| Max PV Open Circuit Voltage 12V [V] | 150 |
| Max PV Open Circuit Voltage 24V [V] | 150 |
| Max PV Open Circuit Voltage 48V [V] | 150 |
| Number of MPPT | 1 |
| Number of Strings/MPPT | 1 |
| Efficiency [%] | 98 |
| Battery Types Supported | Lead acid, AGM, GEL, Lithium |
| Terminal Block Size [AWG] | 2 |
| Terminal Block Temp Rating [C] | 90 |
| Ambient temperature [C] | -30 to +60 |
| Grounding | Negative |
| Dimensions [cm] | 8.5 x 11.6 x 4.1 |
| Weight [kg] | 4.5 |
