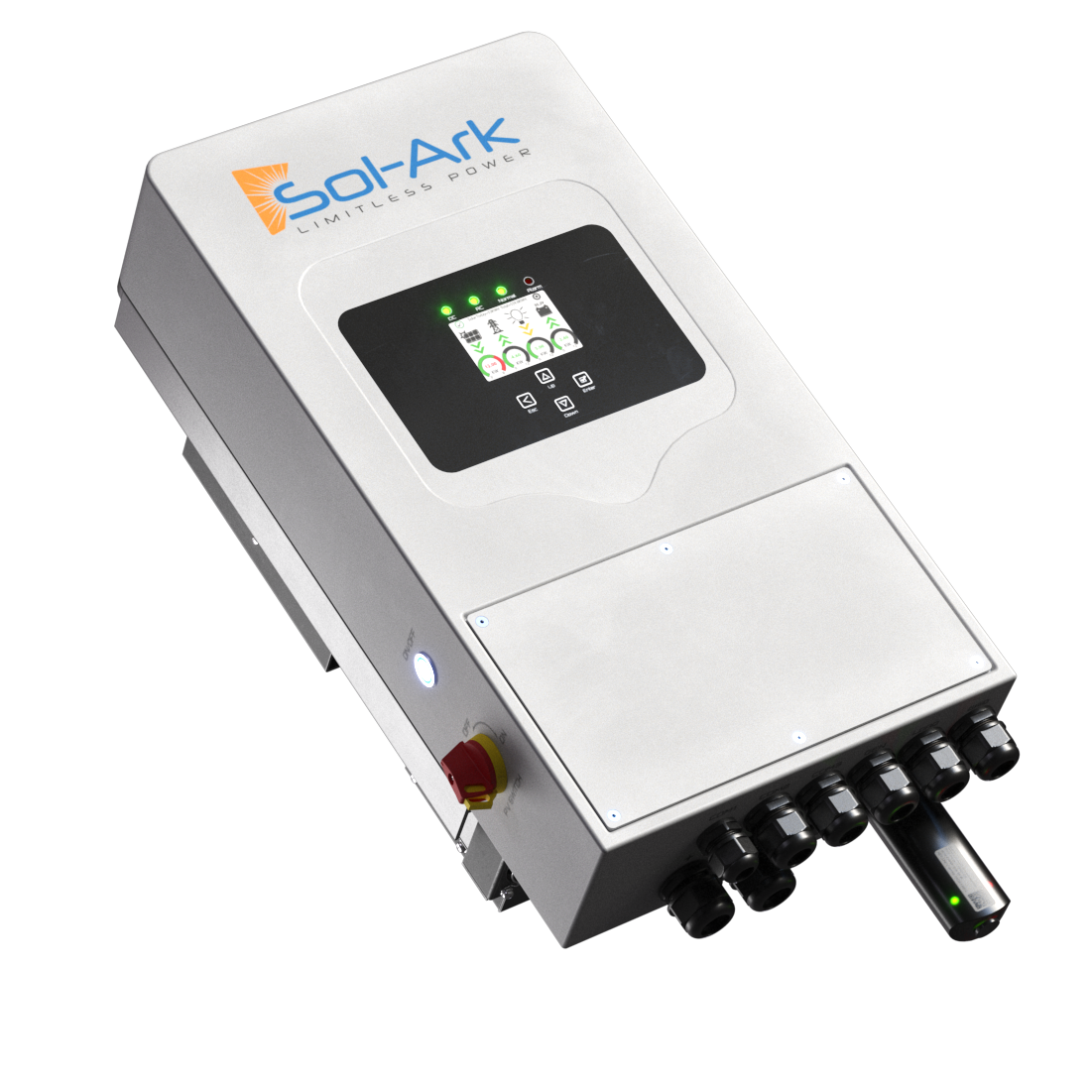

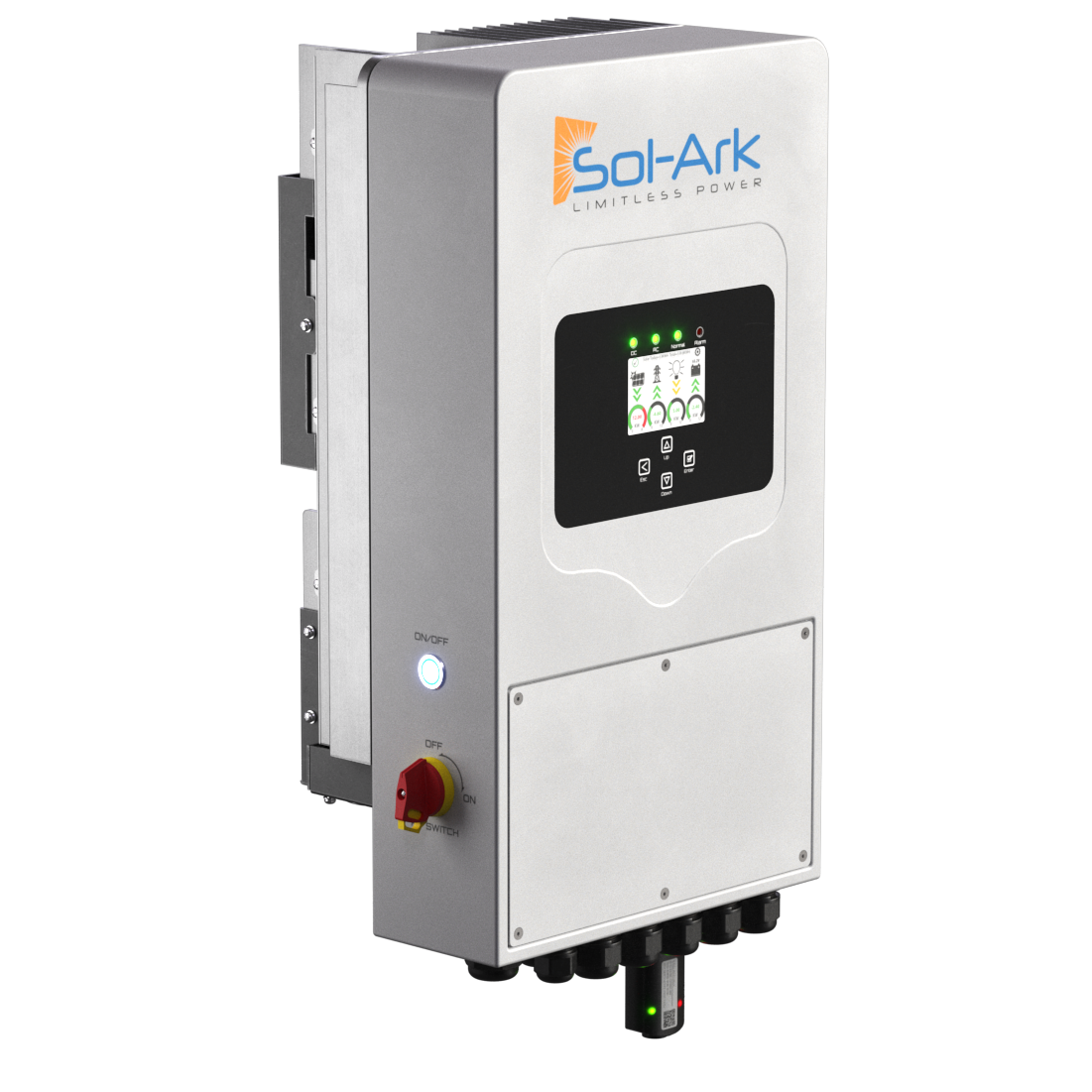

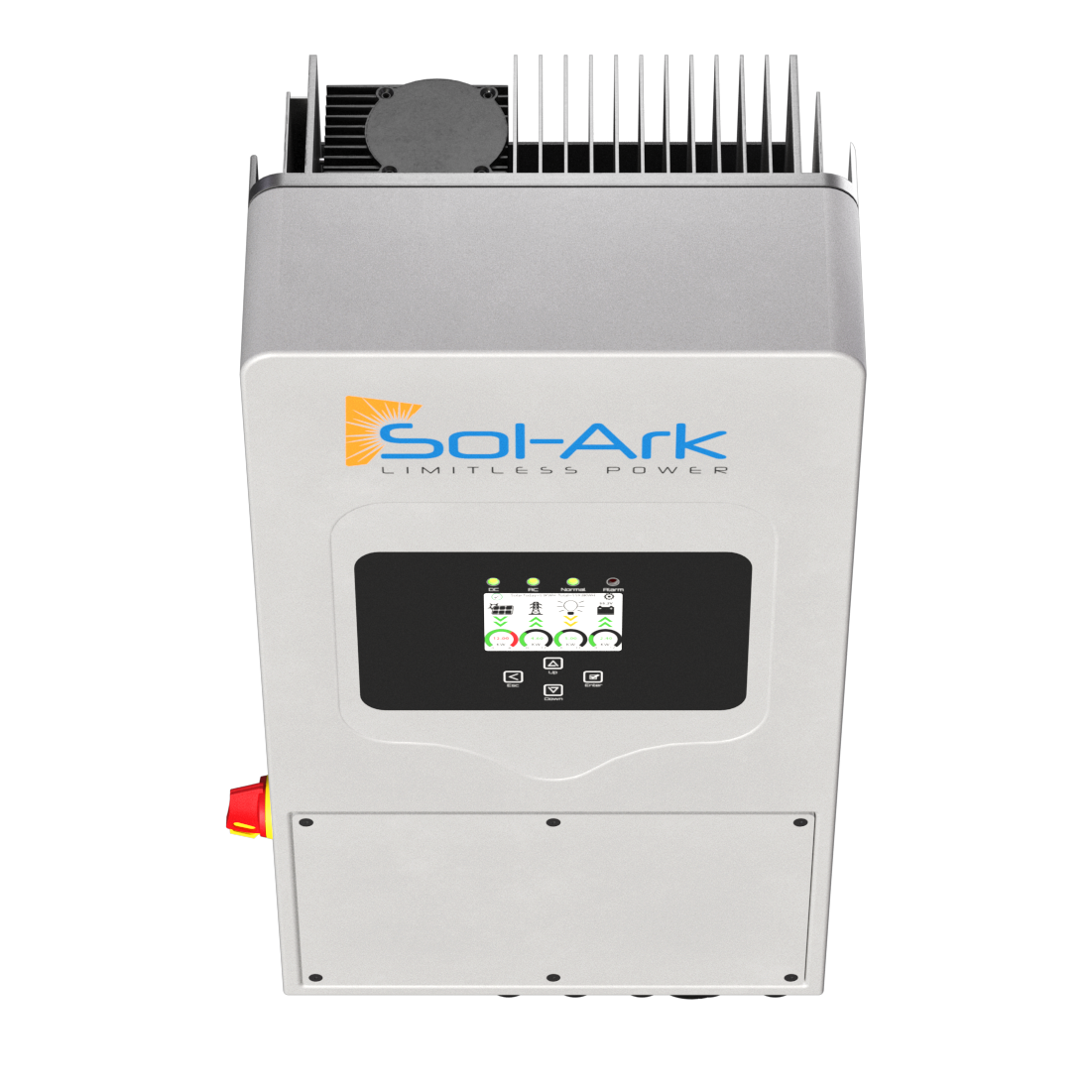

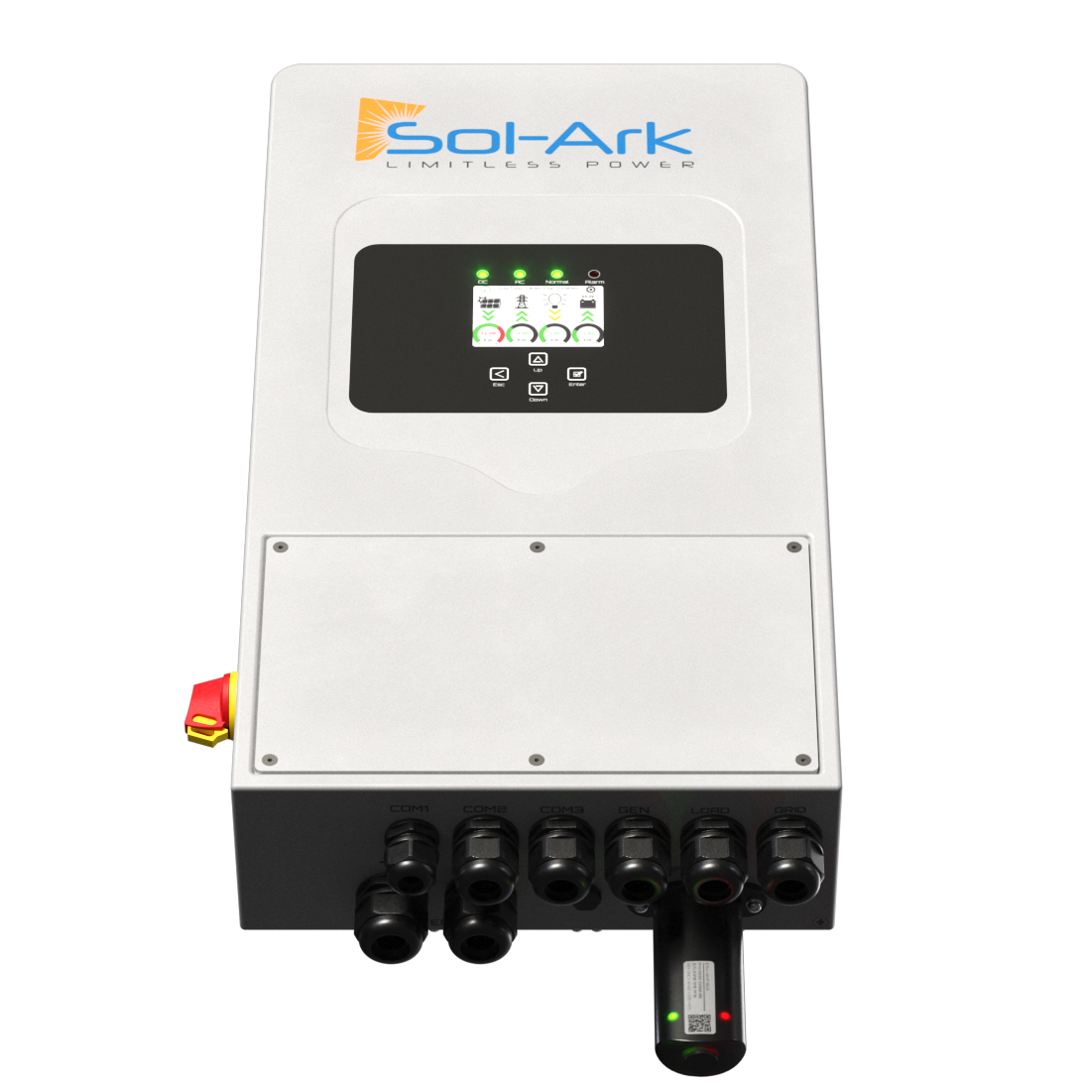

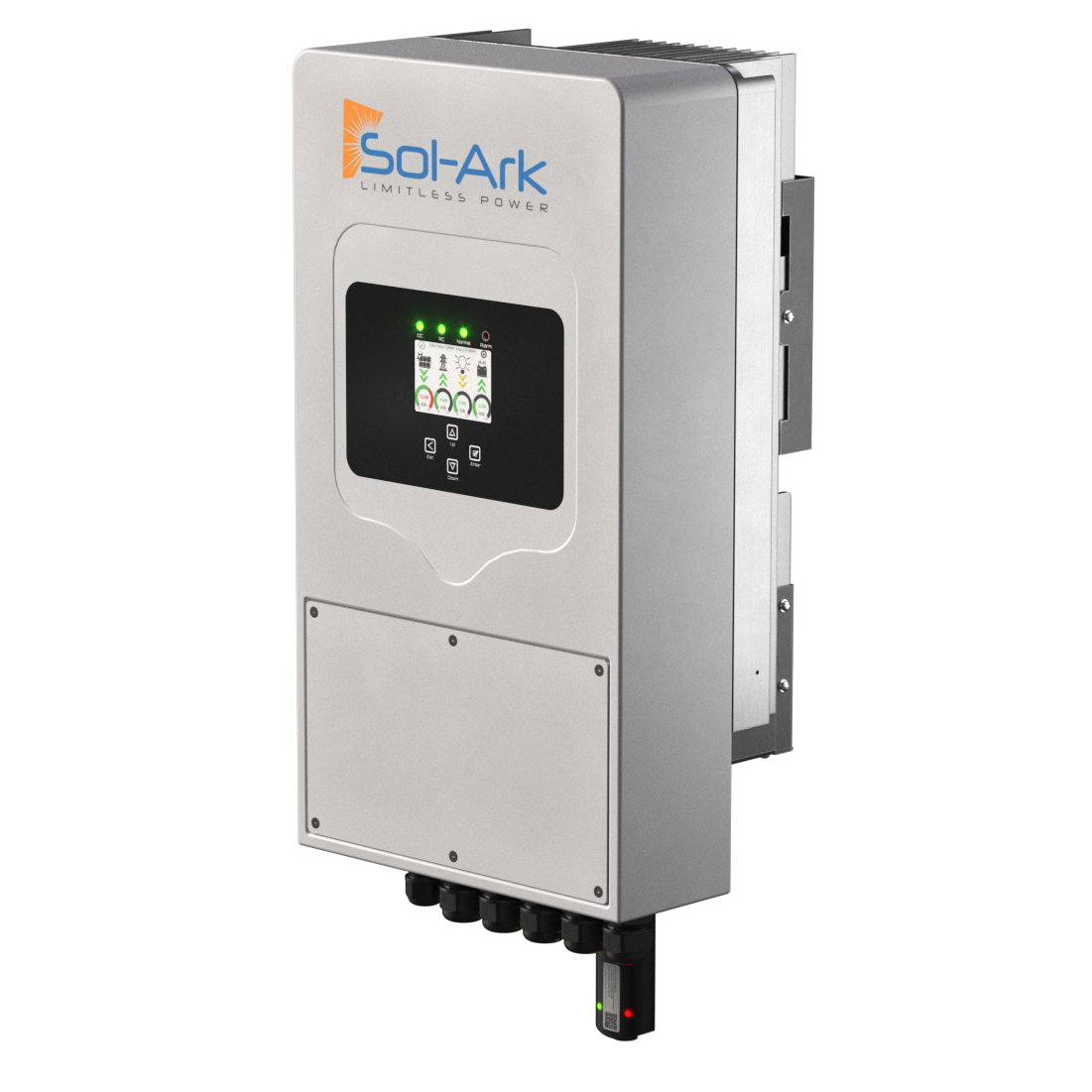

Sol-Ark 5K-1P-N | 120V | All In One Inverter | 48V Battery | 2 MPPT Inputs | 5kW Output | 10.4kW PV Input

Brand new model!

The Sol-Ark 5K-1P-N is a premium all-in-one inverter with a massive 10.4kW PV input capacity and 5kW output. It includes two MPPT inputs for the optimal solar experience and is a 120V inverter. Optimize your energy needs with this reliable and powerful inverter!

Highlights:

• Solar Input
• Max. PV Power (STC): 10,400W
• Two MPPT Inputs:
• MPPT input range: 200 - 425V
• Max Input Current per MPPT: 20A
• Max 2 Strings per MPPT
• Output
• Nominal AC Voltage: 120V
• Single Phase Real Power, max continuous: 4,800W
• Max. Output Current: 40A
• Peak Apparent Power (5s, off-grid): 7,200VA
• Generator Input and Pass-thru
• 50A @ 120V
• 5ms Transfer switch (UPS grade)

Documents:

• Brochure
• Specifications
• Manual

https://cdn.shopify.com/s/files/1/0618/7067/0015/files/5KSpecSheet_V8.pdf?v=1658936233
